libgphoto2 photo camera library (libgphoto2) API  2.5.10.1
template.c File Reference

Documented source code template for a camera driver (camlib). More...

#include "config.h"
#include <string.h>
#include <gphoto2/gphoto2-library.h>
#include <gphoto2/gphoto2-result.h>

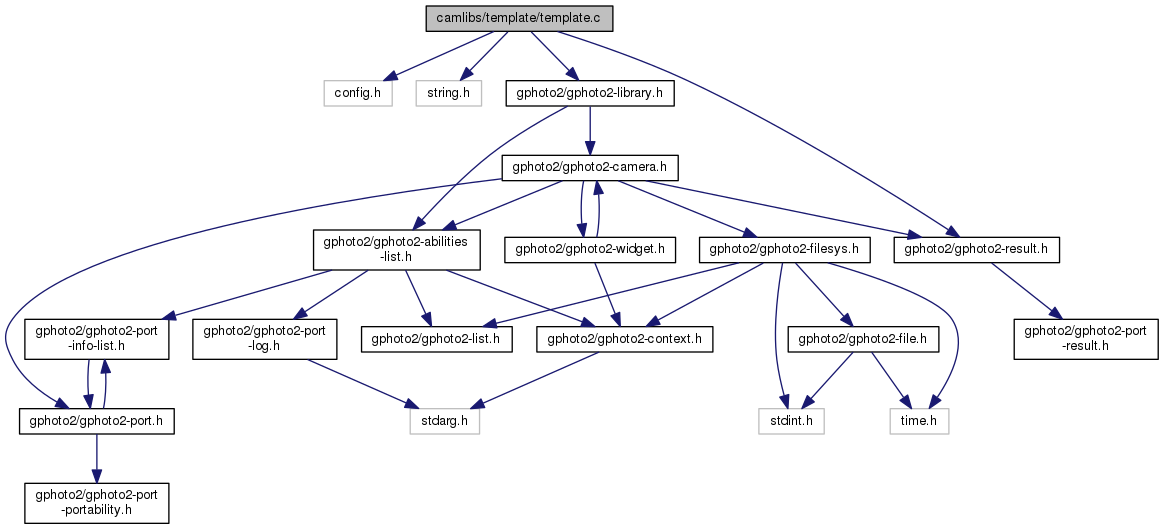

Include dependency graph for template.c:

Macros

#define _(String)   (String)

#define N_(String)   (String)


Functions

Camera object member functions

The prototypes for these functions are defined in gphoto2-camera.h

int camera_exit (Camera *camera, GPContext *context)

int camera_config_get (Camera *camera, CameraWidget **window, GPContext *context)

int camera_config_set (Camera *camera, CameraWidget *window, GPContext *context)

int camera_capture_preview (Camera *camera, CameraFile *file, GPContext *context)

int camera_capture (Camera *camera, CameraCaptureType type, CameraFilePath *path, GPContext *context)

int camera_summary (Camera *camera, CameraText *summary, GPContext *context)

int camera_manual (Camera *camera, CameraText *manual, GPContext *context)

int camera_about (Camera *camera, CameraText *about, GPContext *context)

CameraFilesystem member functions
int get_file_func (CameraFilesystem *fs, const char *folder, const char *filename, CameraFileType type, CameraFile *file, void *data, GPContext *context)

int put_file_func (CameraFilesystem *fs, const char *folder, const char *name, CameraFileType type, CameraFile *file, void *data, GPContext *context)

int delete_file_func (CameraFilesystem *fs, const char *folder, const char *filename, void *data, GPContext *context)

int delete_all_func (CameraFilesystem *fs, const char *folder, void *data, GPContext *context)

int get_info_func (CameraFilesystem *fs, const char *folder, const char *filename, CameraFileInfo *info, void *data, GPContext *context)

int set_info_func (CameraFilesystem *fs, const char *folder, const char *file, CameraFileInfo info, void *data, GPContext *context)

int folder_list_func (CameraFilesystem *fs, const char *folder, CameraList *list, void *data, GPContext *context)

int file_list_func (CameraFilesystem *fs, const char *folder, CameraList *list, void *data, GPContext *context)

int storage_info_func (CameraFilesystem *fs, CameraStorageInformation **storageinformations, int *nrofstorageinformations, void *data, GPContext *context)


camlib API functions

CameraFilesystemFuncs fsfuncs

int camera_id (CameraText *id)
 Get a unique camera id. More...

int camera_abilities (CameraAbilitiesList *list)
 Get a list of abilities of all supported cameras. More...

int camera_init (Camera *camera, GPContext *context)


Detailed Description

Documented source code template for a camera driver (camlib).

Author
Copyright 2001 Lutz Mueller lutz@.nosp@m.user.nosp@m.s.sou.nosp@m.rcef.nosp@m.orge..nosp@m.net
Copyright 2005 Hans Ulrich Niedermann gp@n-.nosp@m.dime.nosp@m.nsion.nosp@m.al.d.nosp@m.e
This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.
This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.
You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Introduction to camera drivers (camlibs)

Every camlib must implement the following three function groups:

  • Camera object member functions
  • CameraFilesystem object member functions
  • camlib API functions

We implement the camlib API functions last in this file because camera_init() must reference all the object member functions and by making camera_init() the last function in this file, we can avoid the need for forward declarations of the object member functions.

Note about "static" functions and exporting symbols

The build system uses libtool to explicitly specify the list of exported symbols. Only the three functions of the camlib API (camera_init(), camera_id(), and camera_abilities()) are exported.

Therefore it doesn't matter whether you declare your other functions static or not - regardless of whether they are object member functions or internal camlib functions.

We do not define the object member functions as static in this template in order to have autogenerated documentation about them.

Function Documentation

int camera_abilities ( CameraAbilitiesList list)

Get a list of abilities of all supported cameras.

Fill list with abilities of the cameras supported by this camlib.

For each camera, fill a CameraAbilities structure with data about that camera and append it to the list.

The job of this function is basically to extract data from a camlib specific database and insert it into the libgphoto2 camera database. Due to redundant data and other issues, we may decide to revise that database mechanism and replace it by something more flexible and efficient.

This is a camlib API function.

References CameraAbilities::file_operations, CameraAbilities::folder_operations, gp_abilities_list_append(), GP_CAPTURE_IMAGE, GP_DRIVER_STATUS_PRODUCTION, GP_FILE_OPERATION_DELETE, GP_FILE_OPERATION_PREVIEW, GP_FOLDER_OPERATION_NONE, GP_OK, GP_OPERATION_CAPTURE_PREVIEW, GP_PORT_SERIAL, GP_PORT_USB, CameraAbilities::model, CameraAbilities::operations, CameraAbilities::port, CameraAbilities::speed, and CameraAbilities::status.

int camera_about ( Camera camera,
CameraText about,
GPContext context
)

Return "About" content as textual description. Will be translated.

This function is a method of the Camera object.

References get_file_func(), GP_OK, and CameraText::text.

Referenced by camera_init(), and camera_manual().

int camera_capture ( Camera camera,
CameraCaptureType  type,
CameraFilePath path,
GPContext context
)

Capture an image and tell libgphoto2 where to find it by filling out the path.

This function is a method of the Camera object.

References camera_summary(), and GP_OK.

Referenced by camera_capture_preview(), and camera_init().

int camera_capture_preview ( Camera camera,
CameraFile file,
GPContext context
)

Capture a preview and return the data in the given file (again, use gp_file_set_data_and_size, gp_file_set_mime_type, etc.). libgphoto2 assumes that previews are NOT stored on the camera's disk. If your camera does, please delete it from the camera.

This function is a method of the Camera object.

References camera_capture(), and GP_OK.

Referenced by camera_config_set(), and camera_init().

int camera_config_get ( Camera camera,
CameraWidget **  window,
GPContext context
)

Get the full configuration tree of the camera.

This function is a method of the Camera object.

References camera_config_set(), GP_OK, gp_widget_new(), and GP_WIDGET_WINDOW.

Referenced by camera_exit(), and camera_init().

int camera_config_set ( Camera camera,
CameraWidget window,
GPContext context
)

Set parts of the configuration tree. Note that you get back the whole tree, but should only set the modified values.

This function is a method of the Camera object.

References camera_capture_preview(), and GP_OK.

Referenced by camera_config_get(), and camera_init().

int camera_exit ( Camera camera,
GPContext context
)

Finish up the camera communication and free private data. You do not need to close the port.

This function is a method of the Camera object.

References camera_config_get(), and GP_OK.

Referenced by camera_init().

int camera_id ( CameraText id)

Get a unique camera id.

Set library ID string.

Probably redundant and to be removed shortly, being replaced by the libtool module name defined in the build system.

This is a camlib API function.

References GP_OK, and CameraText::text.

int camera_init ( Camera camera,
GPContext context
)

Initialize a Camera object.

Sets up all the proper object function pointers, initialize camlib internal data structures, and probably establish a connection to the camera.

This is a camlib API function.

References _CameraFunctions::about, camera_about(), camera_capture(), camera_capture_preview(), camera_config_get(), camera_config_set(), camera_exit(), camera_manual(), camera_summary(), _CameraFunctions::capture, _CameraFunctions::capture_preview, _CameraFunctions::exit, _CameraFunctions::get_config, gp_filesystem_set_funcs(), GP_OK, _CameraFunctions::manual, _CameraFunctions::set_config, and _CameraFunctions::summary.

int camera_manual ( Camera camera,
CameraText manual,
GPContext context
)

Return the camera drivers manual. If you would like to tell the user some information about how to use the camera or the driver, this is the place to do.

This function is a method of the Camera object.

References camera_about(), and GP_OK.

Referenced by camera_init(), and camera_summary().

int camera_summary ( Camera camera,
CameraText summary,
GPContext context
)

Fill out the summary with textual information about the current state of the camera (like pictures taken, etc.).

This function is a method of the Camera object.

References camera_manual(), and GP_OK.

Referenced by camera_capture(), and camera_init().

int delete_all_func ( CameraFilesystem fs,
const char *  folder,
void *  data,
GPContext context
)

Delete all files from the camera.

This function is a CameraFilesystem method.

References get_info_func(), and GP_OK.

Referenced by delete_file_func().

int delete_file_func ( CameraFilesystem fs,
const char *  folder,
const char *  filename,
void *  data,
GPContext context
)

Delete a file from the camera.

This function is a CameraFilesystem method.

References delete_all_func(), and GP_OK.

Referenced by put_file_func().

int file_list_func ( CameraFilesystem fs,
const char *  folder,
CameraList list,
void *  data,
GPContext context
)

List available files in the specified folder.

This function is a CameraFilesystem method.

References GP_OK, and storage_info_func().

Referenced by folder_list_func().

int folder_list_func ( CameraFilesystem fs,
const char *  folder,
CameraList list,
void *  data,
GPContext context
)

List available folders in the specified folder.

This function is a CameraFilesystem method.

References file_list_func(), and GP_OK.

Referenced by set_info_func().

int get_file_func ( CameraFilesystem fs,
const char *  folder,
const char *  filename,
CameraFileType  type,
CameraFile file,
void *  data,
GPContext context
)

Get the file from the camera.

This function is a CameraFilesystem method.

References GP_OK, and put_file_func().

Referenced by camera_about().

int get_info_func ( CameraFilesystem fs,
const char *  folder,
const char *  filename,
CameraFileInfo info,
void *  data,
GPContext context
)

Get the file info here and write it to space provided by caller.

Parameters
infoSpace provided by caller in which file info is written.

This function is a CameraFilesystem method.

References GP_OK, and set_info_func().

Referenced by delete_all_func().

int put_file_func ( CameraFilesystem fs,
const char *  folder,
const char *  name,
CameraFileType  type,
CameraFile file,
void *  data,
GPContext context
)

Put a file onto the camera.

This function is a CameraFilesystem method.

References delete_file_func(), and GP_OK.

Referenced by get_file_func().

int set_info_func ( CameraFilesystem fs,
const char *  folder,
const char *  file,
CameraFileInfo  info,
void *  data,
GPContext context
)

FIXME.

This function is a CameraFilesystem method.

References folder_list_func(), and GP_OK.

Referenced by get_info_func().

int storage_info_func ( CameraFilesystem fs,
CameraStorageInformation **  storageinformations,
int *  nrofstorageinformations,
void *  data,
GPContext context
)

Get information on all available storages in the camera.

This function is a CameraFilesystem method.

References GP_ERROR_NOT_SUPPORTED.

Referenced by file_list_func().

Variable Documentation

Initial value:
= {
.file_list_func = file_list_func,
.folder_list_func = folder_list_func,
.get_info_func = get_info_func,
.set_info_func = set_info_func,
.get_file_func = get_file_func,
.del_file_func = delete_file_func,
.put_file_func = put_file_func,
.delete_all_func = delete_all_func,
.storage_info_func = storage_info_func
}
int folder_list_func(CameraFilesystem *fs, const char *folder, CameraList *list, void *data, GPContext *context)
Definition: template.c:379
int file_list_func(CameraFilesystem *fs, const char *folder, CameraList *list, void *data, GPContext *context)
Definition: template.c:399
int get_file_func(CameraFilesystem *fs, const char *folder, const char *filename, CameraFileType type, CameraFile *file, void *data, GPContext *context)
Definition: template.c:250
int delete_file_func(CameraFilesystem *fs, const char *folder, const char *filename, void *data, GPContext *context)
Definition: template.c:296
int set_info_func(CameraFilesystem *fs, const char *folder, const char *file, CameraFileInfo info, void *data, GPContext *context)
Definition: template.c:359
int delete_all_func(CameraFilesystem *fs, const char *folder, void *data, GPContext *context)
Definition: template.c:316
int put_file_func(CameraFilesystem *fs, const char *folder, const char *name, CameraFileType type, CameraFile *file, void *data, GPContext *context)
Definition: template.c:274
int get_info_func(CameraFilesystem *fs, const char *folder, const char *filename, CameraFileInfo *info, void *data, GPContext *context)
Definition: template.c:341
int storage_info_func(CameraFilesystem *fs, CameraStorageInformation **storageinformations, int *nrofstorageinformations, void *data, GPContext *context)
Definition: template.c:420

All filesystem accessor functions.

This should contain all filesystem accessor functions available in the camera library. Non-present fields are NULL.
