libgphoto2 photo camera library (libgphoto2) API  2.5.10.1
_CameraFunctions Struct Reference

Various camera specific functions. More...

#include <gphoto2-camera.h>

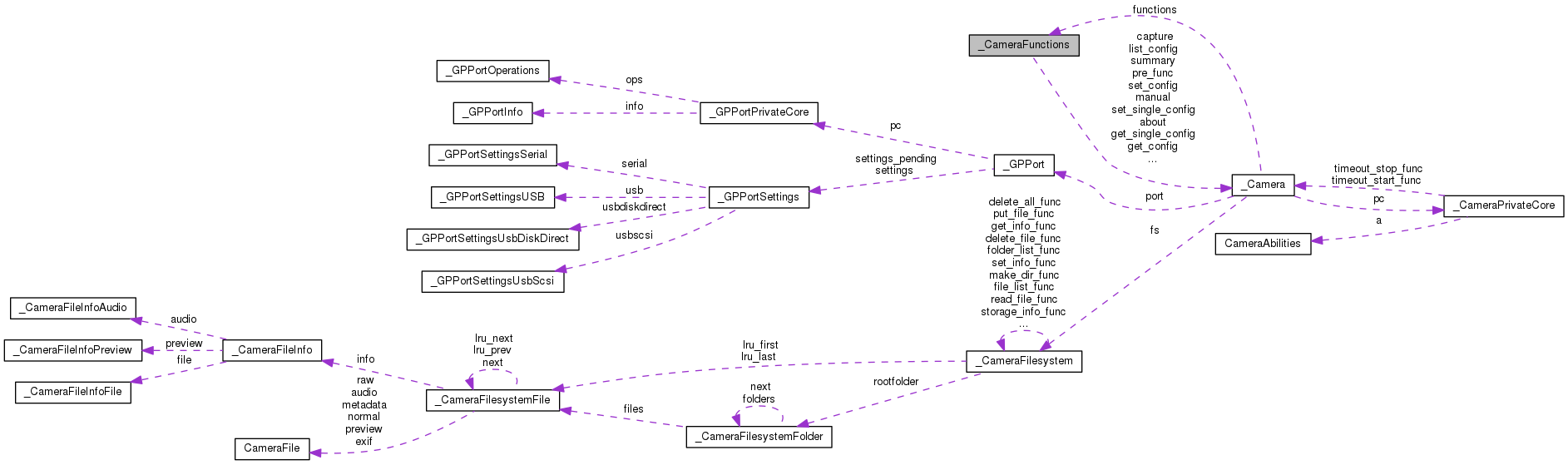

Collaboration diagram for _CameraFunctions:

Data Fields

CameraPrePostFunc pre_func
 Function called before each camera operation.

CameraPrePostFunc post_func
 Function called after each camera operation.

CameraExitFunc exit
 Function called on closing the camera.

CameraGetConfigFunc get_config
 Called for requesting the configuration widgets.

CameraSetConfigFunc set_config
 Called after a configuration was changed.

CameraListConfigFunc list_config
 Called for listing the available configuration widgets.

CameraGetSingleConfigFunc get_single_config
 Called for requesteing a single widget.

CameraSetSingleConfigFunc set_single_config
 Called for setting a single configuration widget.

CameraCaptureFunc capture
 Remote control the camera to capture.

CameraTriggerCaptureFunc trigger_capture
 Remote control the camera to trigger capture.

CameraCapturePreviewFunc capture_preview
 Preview viewfinder content.

CameraSummaryFunc summary
 Give a summary about the current camera status, translated.

CameraManualFunc manual
 Give a brief manual about any specific items a user has to know, translated.

CameraAboutFunc about
 A little About text, including authors and credits.

CameraWaitForEvent wait_for_event
 Wait for a specific event from the camera.

void * reserved1
 reserved for future use

void * reserved2
 reserved for future use

void * reserved3
 reserved for future use

void * reserved4
 reserved for future use

void * reserved5
 reserved for future use

void * reserved6
 reserved for future use

void * reserved7
 reserved for future use

void * reserved8
 reserved for future use


Detailed Description

Various camera specific functions.

This structure contains various pointers to functions that apply to the camera itself, and not the filesystem (which is handled by the filesystem functions). Set the ones you want to provide, leave the rest unset.

This structure should only used by the driver itself, the frontend should use the gp_camera_xxx wrapper functions for it, who handle opening and locking around those hooks.


The documentation for this struct was generated from the following file:
