Implement Camera object representing a camera attached to the system. More...

#include <gphoto2/gphoto2-abilities-list.h>
#include <gphoto2/gphoto2-port.h>
#include <gphoto2/gphoto2-widget.h>
#include <gphoto2/gphoto2-filesys.h>
#include <gphoto2/gphoto2-result.h>

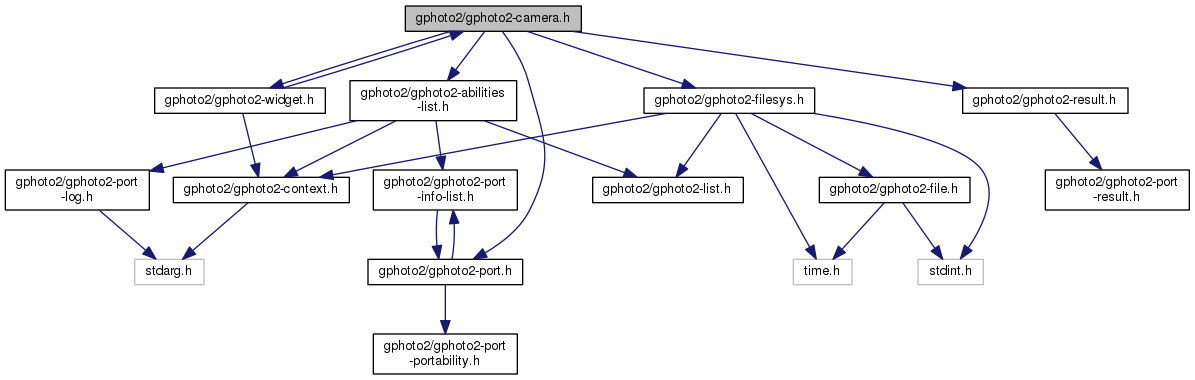

Include dependency graph for gphoto2-camera.h:

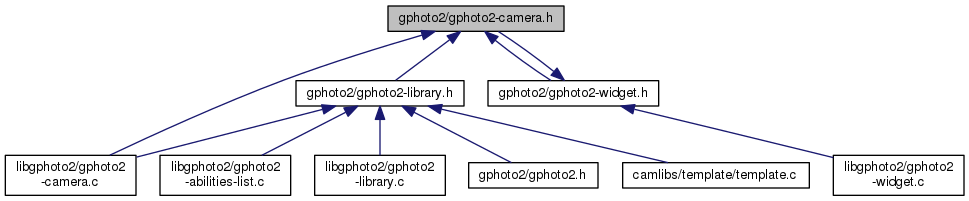

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	CameraText
	CameraText structure used in various functions. More...

struct	CameraFilePath
	A structure created by the capture operation. More...

struct	_CameraFunctions
	Various camera specific functions. More...

struct	_Camera

Typedefs
typedef struct _Camera	Camera
	Object representing a camera attached to the system. More...

typedef int(*	CameraPrePostFunc) (Camera camera, GPContext context)

typedef struct _CameraFunctions	CameraFunctions
	Various camera specific functions. More...

typedef struct _CameraPrivateLibrary	CameraPrivateLibrary

typedef struct _CameraPrivateCore	CameraPrivateCore

Camera object member functions
These functions must be implemented by a camlib and the camlib's camera_init() function will add them to a Camera object.
typedef int(*	CameraExitFunc) (Camera camera, GPContext context)
	The camera exit function. More...

typedef int(*	CameraGetConfigFunc) (Camera camera, CameraWidget widget, GPContext context)
	Get a configuration tree for the camera and its driver. More...

typedef int(*	CameraGetSingleConfigFunc) (Camera camera, const char name, CameraWidget *widget, GPContext context)
	Get a configuration widget for a specific configuration. More...

typedef int(*	CameraListConfigFunc) (Camera camera, CameraList list, GPContext *context)
	List all configuration widgets for a specific configuration. More...

typedef int(*	CameraSetConfigFunc) (Camera camera, CameraWidget widget, GPContext *context)
	Set the configuration in the camera. More...

typedef int(*	CameraSetSingleConfigFunc) (Camera camera, const char name, CameraWidget widget, GPContext context)
	Set a single configuration variable in the camera. More...

typedef int(*	CameraCaptureFunc) (Camera camera, CameraCaptureType type, CameraFilePath path, GPContext *context)

typedef int(*	CameraTriggerCaptureFunc) (Camera camera, GPContext context)

typedef int(*	CameraCapturePreviewFunc) (Camera camera, CameraFile file, GPContext *context)

typedef int(*	CameraSummaryFunc) (Camera camera, CameraText text, GPContext *context)

typedef int(*	CameraManualFunc) (Camera camera, CameraText text, GPContext *context)

typedef int(*	CameraAboutFunc) (Camera camera, CameraText text, GPContext *context)

typedef int(*	CameraWaitForEvent) (Camera camera, int timeout, CameraEventType eventtype, void *eventdata, GPContext context)

Enumerations
enum	CameraCaptureType { GP_CAPTURE_IMAGE, GP_CAPTURE_MOVIE, GP_CAPTURE_SOUND }
	Type of the capture to do. More...

enum	CameraEventType { GP_EVENT_UNKNOWN, GP_EVENT_TIMEOUT, GP_EVENT_FILE_ADDED, GP_EVENT_FOLDER_ADDED, GP_EVENT_CAPTURE_COMPLETE }
	Specify what event we received from the camera. More...

Functions
int	gp_camera_new (Camera **camera)

Preparing initialization
int	gp_camera_set_abilities (Camera *camera, CameraAbilities abilities)
	Sets the camera abilities. More...

int	gp_camera_get_abilities (Camera camera, CameraAbilities abilities)

int	gp_camera_set_port_info (Camera *camera, GPPortInfo info)

int	gp_camera_get_port_info (Camera camera, GPPortInfo info)

camera speed
You normally don't use that. If you do, you prevent the camera driver from selecting the optimal speed.
int	gp_camera_set_port_speed (Camera *camera, int speed)

int	gp_camera_get_port_speed (Camera *camera)

Initialization
int	gp_camera_autodetect (CameraList list, GPContext context)

int	gp_camera_init (Camera camera, GPContext context)

int	gp_camera_exit (Camera camera, GPContext context)

Operations on cameras
int	gp_camera_ref (Camera *camera)

int	gp_camera_unref (Camera *camera)

int	gp_camera_free (Camera *camera)

int	gp_camera_get_config (Camera camera, CameraWidget window, GPContext context)

int	gp_camera_list_config (Camera camera, CameraList list, GPContext *context)

int	gp_camera_get_single_config (Camera camera, const char name, CameraWidget *widget, GPContext context)

int	gp_camera_set_config (Camera camera, CameraWidget window, GPContext *context)

int	gp_camera_set_single_config (Camera camera, const char name, CameraWidget widget, GPContext context)

int	gp_camera_get_summary (Camera camera, CameraText summary, GPContext *context)

int	gp_camera_get_manual (Camera camera, CameraText manual, GPContext *context)

int	gp_camera_get_about (Camera camera, CameraText about, GPContext *context)

int	gp_camera_capture (Camera camera, CameraCaptureType type, CameraFilePath path, GPContext *context)

int	gp_camera_trigger_capture (Camera camera, GPContext context)

int	gp_camera_capture_preview (Camera camera, CameraFile file, GPContext *context)

int	gp_camera_wait_for_event (Camera camera, int timeout, CameraEventType eventtype, void *eventdata, GPContext context)

int	gp_camera_get_storageinfo (Camera camera, CameraStorageInformation , int , GPContext *context)
	Gets information on the camera attached storage. More...

Operations on folders
int	gp_camera_folder_list_files (Camera camera, const char folder, CameraList list, GPContext context)

int	gp_camera_folder_list_folders (Camera camera, const char folder, CameraList list, GPContext context)

int	gp_camera_folder_delete_all (Camera camera, const char folder, GPContext *context)

int	gp_camera_folder_put_file (Camera camera, const char folder, const char filename, CameraFileType type, CameraFile file, GPContext *context)

int	gp_camera_folder_make_dir (Camera camera, const char folder, const char name, GPContext context)

int	gp_camera_folder_remove_dir (Camera camera, const char folder, const char name, GPContext context)

Operations on files
int	gp_camera_file_get_info (Camera camera, const char folder, const char file, CameraFileInfo info, GPContext *context)

int	gp_camera_file_set_info (Camera camera, const char folder, const char file, CameraFileInfo info, GPContext context)

int	gp_camera_file_get (Camera camera, const char folder, const char file, CameraFileType type, CameraFile camera_file, GPContext *context)

int	gp_camera_file_read (Camera camera, const char folder, const char file, CameraFileType type, uint64_t offset, char buf, uint64_t size, GPContext context)

int	gp_camera_file_delete (Camera camera, const char folder, const char file, GPContext context)

Some cameras need 'keep-alive-messages'.
typedef int(*	CameraTimeoutFunc) (Camera camera, GPContext context)

typedef unsigned int(*	CameraTimeoutStartFunc) (Camera camera, unsigned int timeout, CameraTimeoutFunc func, void data)

typedef void(*	CameraTimeoutStopFunc) (Camera camera, unsigned int id, void data)

void	gp_camera_set_timeout_funcs (Camera camera, CameraTimeoutStartFunc start_func, CameraTimeoutStopFunc stop_func, void data)

int	gp_camera_start_timeout (Camera *camera, unsigned int timeout, CameraTimeoutFunc func)

void	gp_camera_stop_timeout (Camera *camera, unsigned int id)

Detailed Description

Implement Camera object representing a camera attached to the system.

Author: Copyright 2000 Scott Fritzinger

Note: This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.; This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.; You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Typedef Documentation

typedef struct _Camera Camera

Object representing a camera attached to the system.

A Camera object represents a specific instance of a (physical of virtual) camera attached to the system.

The abilities of this type of camera are stored in a CameraAbility object.

The details of the Camera object are internal.

typedef int(* CameraExitFunc) (Camera *camera, GPContext *context)

The camera exit function.

Parameters

camera	the current camera
context	a GPContext

This functions is called in the camera driver for closing the camera connection. It should do the necessary cleanups of the internal camera state, free allocated private structures and similar.

The driver does not need to close the GPPort, this is done by libgphoto2 itself.

Implement this function if you need to any of this stuff, otherwise leave it out.

Returns: a gphoto error code

typedef struct _CameraFunctions CameraFunctions

Various camera specific functions.

This structure contains various pointers to functions that apply to the camera itself, and not the filesystem (which is handled by the filesystem functions). Set the ones you want to provide, leave the rest unset.

This structure should only used by the driver itself, the frontend should use the gp_camera_xxx wrapper functions for it, who handle opening and locking around those hooks.

typedef int(* CameraGetConfigFunc) (Camera *camera, CameraWidget **widget, GPContext *context)

Get a configuration tree for the camera and its driver.

Parameters

camera	the current camera
widget	pointer to store the toplevel widget of the tree
context	the active GPContext

A camera driver can support configuration of either its own behaviour or the camera device itself. To allow a flexible driver framework, the camera driver provides a generic configuration widget tree to the frontend, which then renders it, allows user input and sends it back via the CameraSetConfigFunc function to have the driver configure itself or the camera.

If you do not have configuration ability, there is no need to specify this function.

Returns: a gphoto error code

typedef int(* CameraGetSingleConfigFunc) (Camera *camera, const char *name, CameraWidget **widget, GPContext *context)

Get a configuration widget for a specific configuration.

Parameters

camera	the current camera
name	the name of the widget
widget	pointer to store the toplevel widget of the tree
context	the active GPContext

A camera driver can support configuration of either its own behaviour or the camera device itself. To allow a flexible driver framework, the camera driver provides a generic configuration widget tree to the frontend, which then renders it, allows user input and sends it back via the CameraSetConfigFunc function to have the driver configure itself or the camera.

This specific function retrieves one specific named entry, and not the full tree to allow for querying specific settings faster.

If you do not have configuration ability, there is no need to specify this function.

Returns: a gphoto error code

typedef int(* CameraListConfigFunc) (Camera *camera, CameraList *list, GPContext *context)

List all configuration widgets for a specific configuration.

Parameters

camera	the current camera
list	the list of widgets available
context	the active GPContext

A camera driver can support configuration of either its own behaviour or the camera device itself. To allow a flexible driver framework, the camera driver provides a generic configuration widget tree to the frontend, which then renders it, allows user input and sends it back via the CameraSetConfigFunc function to have the driver configure itself or the camera.

This specific function retrieves all the available configuration values in a flat list.

This is different than the GetConfigFunc, which returns a configuration tree.

If you do not have configuration ability, there is no need to specify this function.

Returns: a gphoto error code

typedef int(* CameraPrePostFunc) (Camera *camera, GPContext *context)

Parameters

camera	a Camera object
context	a GPContext object

Returns: a gphoto2 error code

Implement this function in the camera driver if the camera needs to be initialized before or reset the after each access from libgphoto2.

For example, you would probably set the speed to the highest one right before downloading an image, and reset it to the default speed afterwards so that other programs will not be affected by this speed change.

typedef int(* CameraSetConfigFunc) (Camera *camera, CameraWidget *widget, GPContext *context)

Set the configuration in the camera.

Parameters

camera	the current camera
widget	the configuration widget tree that was changed
context	the active GPContext

This function is called in the driver after the configuration is set. It is called directly after setting the value and might called multiple times (or never) after just one CameraGetConfigFunc.

Returns: a gphoto error code

typedef int(* CameraSetSingleConfigFunc) (Camera *camera, const char *name, CameraWidget *widget, GPContext *context)

Set a single configuration variable in the camera.

Parameters

camera	the current camera
name	the widget to set
widget	the configuration widget tree that was changed
context	the active GPContext

This function is called in the driver after the configuration value is set.

Returns: a gphoto error code

Enumeration Type Documentation

enum CameraCaptureType

Type of the capture to do.

Specifies the type of capture the user wants to do with the gp_camera_capture() function.

Enumerator
GP_CAPTURE_IMAGE	Capture an image.
GP_CAPTURE_MOVIE	Capture a movie.
GP_CAPTURE_SOUND	Capture audio.

enum CameraEventType

Specify what event we received from the camera.

Used by gp_camera_wait_for_event() to specify what event happened on the camera. This functionality is still in development and might change.

Enumerator
GP_EVENT_UNKNOWN	unknown and unhandled event
GP_EVENT_TIMEOUT	timeout, no arguments
GP_EVENT_FILE_ADDED	CameraFilePath* = file path on camfs
GP_EVENT_FOLDER_ADDED	CameraFilePath* = folder on camfs
GP_EVENT_CAPTURE_COMPLETE	last capture is complete

Function Documentation

int gp_camera_autodetect	(	CameraList *	list,
		GPContext *	context
	)

Autodetect all detectable camera

Parameters

list	a CameraList that receives the autodetected cameras
context	a GPContext

Returns: a gphoto2 error code

This camera will autodetected all cameras that can be autodetected. This will for instance detect all USB cameras.

CameraList *list; gp_list_new (&list); gp_camera_autodetect (list, context); ... done! ...

References gp_abilities_list_detect(), gp_abilities_list_free(), gp_abilities_list_load(), gp_abilities_list_new(), gp_list_append(), gp_list_count(), gp_list_free(), gp_list_get_name(), gp_list_get_value(), gp_list_new(), GP_OK, gp_port_info_list_count(), gp_port_info_list_free(), gp_port_info_list_load(), and gp_port_info_list_new().

int gp_camera_capture	(	Camera *	camera,
		CameraCaptureType	type,
		CameraFilePath *	path,
		GPContext *	context
	)

Captures an image, movie, or sound clip depending on the given type.

Parameters

camera	a Camera
type	a CameraCaptureType
path	a CameraFilePath
context	a GPContext

Returns: a gphoto2 error code

The resulting file will be stored on the camera. The location gets stored in path. The file can then be downloaded using gp_camera_file_get.

References _CameraFunctions::capture, GP_ERROR_NOT_SUPPORTED, and GP_OK.

int gp_camera_capture_preview	(	Camera *	camera,
		CameraFile *	file,
		GPContext *	context
	)

Captures a preview that won't be stored on the camera but returned in supplied file.

Parameters

camera	a Camera
file	a CameraFile
context	a GPContext

Returns: a gphoto2 error code

For example, you could use gp_capture_preview() for taking some sample pictures before calling gp_capture().

References _CameraFunctions::capture_preview, GP_ERROR_NOT_SUPPORTED, gp_file_clean(), gp_file_get_name_by_type(), gp_file_set_name(), GP_FILE_TYPE_NORMAL, and GP_OK.

int gp_camera_exit	(	Camera *	camera,
		GPContext *	context
	)

Close connection to camera.

Parameters

camera	a Camera object
context	a GPContext object

Returns: a gphoto2 error code.

Closes a connection to the camera and therefore gives other application the possibility to access the camera, too.

It is recommended that you call this function when you currently don't need the camera. The camera will get reinitialized by gp_camera_init() automatically if you try to access the camera again.

References _CameraFunctions::exit, gp_camera_stop_timeout(), gp_filesystem_reset(), GP_OK, gp_port_close(), gp_port_open(), CameraAbilities::model, and _Camera::pc.

Referenced by gp_camera_free(), gp_camera_get_abilities(), gp_camera_set_abilities(), and gp_camera_set_port_speed().

int gp_camera_file_delete	(	Camera *	camera,
		const char *	folder,
		const char *	file,
		GPContext *	context
	)

Deletes the file from folder.

Parameters

camera	a Camera
folder	a folder
file	the name of a file
context	a GPContext

Returns: a gphoto2 error code

References gp_filesystem_delete_file(), and GP_OK.

int gp_camera_file_get	(	Camera *	camera,
		const char *	folder,
		const char *	file,
		CameraFileType	type,
		CameraFile *	camera_file,
		GPContext *	context
	)

Retrieves a file from the Camera.

Parameters

camera	a Camera
folder	a folder
file	the name of a file
type	the CameraFileType
camera_file	a CameraFile
context	a GPContext

Returns: a gphoto2 error code

References GP_ERROR_DIRECTORY_NOT_FOUND, GP_ERROR_FILE_NOT_FOUND, gp_file_clean(), gp_filesystem_get_file(), and GP_OK.

Referenced by gp_camera_file_get_info().

int gp_camera_file_get_info	(	Camera *	camera,
		const char *	folder,
		const char *	file,
		CameraFileInfo *	info,
		GPContext *	context
	)

Retrieves information about a file.

Parameters

camera	a Camera
folder	a folder
file	the name of the file
info
context	a GPContext

Returns: a gphoto2 error code

References _CameraFileInfoFile::fields, _CameraFileInfoPreview::fields, gp_camera_file_get(), GP_ERROR_NOT_SUPPORTED, gp_file_get_data_and_size(), gp_file_get_mime_type(), GP_FILE_INFO_NONE, GP_FILE_INFO_SIZE, GP_FILE_INFO_TYPE, gp_file_new(), GP_FILE_TYPE_PREVIEW, gp_file_unref(), gp_filesystem_get_info(), GP_OK, _CameraFileInfoPreview::size, and _CameraFileInfoPreview::type.

int gp_camera_file_read	(	Camera *	camera,
		const char *	folder,
		const char *	file,
		CameraFileType	type,
		uint64_t	offset,
		char *	buf,
		uint64_t *	size,
		GPContext *	context
	)

Reads a file partially from the Camera.

Parameters

camera	a Camera
folder	a folder
file	the name of a file
type	the CameraFileType
offset	the offset into the camera file
data	the buffer receiving the data
size	the size to be read and that was read
context	a GPContext

Returns: a gphoto2 error code

References GP_ERROR_DIRECTORY_NOT_FOUND, GP_ERROR_FILE_NOT_FOUND, gp_filesystem_read_file(), and GP_OK.

int gp_camera_file_set_info	(	Camera *	camera,
		const char *	folder,
		const char *	file,
		CameraFileInfo	info,
		GPContext *	context
	)

Sets some file properties like name or permissions.

Parameters

camera	a Camera
folder	a folder
file	the name of a file
info	the CameraFileInfo
context	a GPContext

Returns: a gphoto2 error code

References gp_filesystem_set_info(), and GP_OK.

int gp_camera_folder_delete_all	(	Camera *	camera,
		const char *	folder,
		GPContext *	context
	)

Deletes all files in a given folder.

Parameters

camera	a Camera
folder	a folder
context	a GPContext

Returns: a gphoto2 error code

References gp_filesystem_delete_all(), and GP_OK.

int gp_camera_folder_list_files	(	Camera *	camera,
		const char *	folder,
		CameraList *	list,
		GPContext *	context
	)

Lists the files in supplied folder.

Parameters

camera	a Camera
folder	a folder
list	a CameraList
context	a GPContext

Returns: a gphoto2 error code

References gp_filesystem_list_files(), gp_list_reset(), gp_list_sort(), and GP_OK.

int gp_camera_folder_list_folders	(	Camera *	camera,
		const char *	folder,
		CameraList *	list,
		GPContext *	context
	)

Lists the folders in supplied folder.

Parameters

camera	a Camera
folder	a folder
list	a CameraList
context	a GPContext

Returns: a gphoto2 error code

References gp_filesystem_list_folders(), gp_list_reset(), gp_list_sort(), and GP_OK.

int gp_camera_folder_make_dir	(	Camera *	camera,
		const char *	folder,
		const char *	name,
		GPContext *	context
	)

Creates a new directory called name in the given folder.

Parameters

camera	a Camera
folder	the location where to create the new directory
name	the name of the directory to be created
context	a GPContext

Returns: a gphoto2 error code

References gp_filesystem_make_dir(), and GP_OK.

int gp_camera_folder_put_file	(	Camera *	camera,
		const char *	folder,
		const char *	filename,
		CameraFileType	type,
		CameraFile *	file,
		GPContext *	context
	)

Uploads a file into given folder.

Parameters

camera	a Camera
folder	a folder
file	a CameraFile
context	a GPContext

Returns: a gphoto2 error code

References gp_filesystem_put_file(), and GP_OK.

int gp_camera_folder_remove_dir	(	Camera *	camera,
		const char *	folder,
		const char *	name,
		GPContext *	context
	)

Removes an (empty) directory called name from the given folder.

Parameters

camera	a Camera
folder	the folder from which to remove the directory
name	the name of the directory to be removed
context	a GPContext

Returns: a gphoto2 error code

References gp_filesystem_remove_dir(), and GP_OK.

int gp_camera_free ( Camera * camera )

Free the camera.

Parameters

camera a Camera

Returns: a gphoto2 error code

Deprecated:: This function should never be used. Please use gp_camera_unref instead.

References gp_camera_exit(), gp_filesystem_free(), GP_OK, gp_port_free(), and _Camera::pc.

Referenced by gp_camera_new(), and gp_camera_unref().

int gp_camera_get_abilities	(	Camera *	camera,
		CameraAbilities *	abilities
	)

Retrieve the abilities of the camera.

Parameters

camera	a Camera
abilities

Returns: a gphoto2 error code

References gp_camera_exit(), GP_OK, gp_port_get_info(), gp_port_info_get_name(), gp_port_info_get_path(), gp_port_set_info(), and _Camera::pc.

int gp_camera_get_about	(	Camera *	camera,
		CameraText *	about,
		GPContext *	context
	)

Retrieves information about the camera driver.

Parameters

camera	a Camera
about	a CameraText
context	a GPContext

Returns: a gphoto2 error code

Typically, this information contains name and address of the author, acknowledgements, etc.

References _CameraFunctions::about, GP_ERROR_NOT_SUPPORTED, and GP_OK.

int gp_camera_get_config	(	Camera *	camera,
		CameraWidget **	window,
		GPContext *	context
	)

Retrieve a configuration window for the camera.

Parameters

camera	a Camera
window	a CameraWidget
context	a GPContext

Returns: gphoto2 error code

This window can be used for construction of a configuration dialog.

References _CameraFunctions::get_config, GP_ERROR_NOT_SUPPORTED, and GP_OK.

int gp_camera_get_manual	(	Camera *	camera,
		CameraText *	manual,
		GPContext *	context
	)

Retrieves the manual for given camera.

Parameters

camera	a Camera
manual	a CameraText
context	a GPContext

Returns: a gphoto2 error code

This manual typically contains information about using the camera.

References GP_ERROR_NOT_SUPPORTED, GP_OK, and _CameraFunctions::manual.

int gp_camera_get_port_speed ( Camera * camera )

Retrieve the current speed.

Parameters

camera a Camera

Returns: The current speed or a gphoto2 error code

References _Camera::pc.

int gp_camera_get_single_config	(	Camera *	camera,
		const char *	name,
		CameraWidget **	widget,
		GPContext *	context
	)

Retrieve a single configuration widget for the camera.

Parameters

camera	a Camera
name	the name of a configuration widget
widget	a CameraWidget
context	a GPContext

Returns: gphoto2 error code

This widget will then contain the current and the possible values and the type.

References _CameraFunctions::get_config, _CameraFunctions::get_single_config, GP_ERROR_BAD_PARAMETERS, GP_ERROR_NOT_SUPPORTED, gp_list_append(), GP_OK, gp_widget_add_choice(), GP_WIDGET_BUTTON, gp_widget_count_children(), gp_widget_count_choices(), GP_WIDGET_DATE, gp_widget_free(), gp_widget_get_child(), gp_widget_get_child_by_name(), gp_widget_get_choice(), gp_widget_get_label(), gp_widget_get_name(), gp_widget_get_range(), gp_widget_get_readonly(), gp_widget_get_type(), gp_widget_get_value(), GP_WIDGET_MENU, gp_widget_new(), GP_WIDGET_RADIO, GP_WIDGET_RANGE, GP_WIDGET_SECTION, gp_widget_set_name(), gp_widget_set_range(), gp_widget_set_readonly(), gp_widget_set_value(), GP_WIDGET_TEXT, GP_WIDGET_TOGGLE, GP_WIDGET_WINDOW, and _CameraFunctions::list_config.

int gp_camera_get_storageinfo	(	Camera *	camera,
		CameraStorageInformation **	sifs,
		int *	nrofsifs,
		GPContext *	context
	)

Gets information on the camera attached storage.

Parameters

camera	a Camera
sifs	Pointer to receive a pointer to/array of storage info items
nrofsifs	Pointer to receive number of array entries
context	a GPContext

Returns: a gphoto2 error code

Retrieves the storage information, like maximum and free space, for the specified filesystem, if supported by the device. The storage information is returned in an newly allocated array of CameraStorageInformation objects, to which the pointer pointed to by #sifs will be set.

The variable pointed to by #nrofsifs will be set to the number of elements in that array.

It is the caller's responsibility to free the memory of the array.

References gp_filesystem_get_storageinfo(), and GP_OK.

int gp_camera_get_summary	(	Camera *	camera,
		CameraText *	summary,
		GPContext *	context
	)

Retrieves a camera summary.

Parameters

camera	a Camera
summary	a CameraText
context	a GPContext

Returns: a gphoto2 error code

This summary typically contains information like manufacturer, pictures taken, or generally information that is not configurable.

References GP_ERROR_NOT_SUPPORTED, GP_OK, and _CameraFunctions::summary.

int gp_camera_init	(	Camera *	camera,
		GPContext *	context
	)

Initiate a connection to the camera.

Parameters

camera	a Camera
context	a GPContext

Returns: a gphoto2 error code

Before calling this function, the camera should be set up using gp_camera_set_port_path() or gp_camera_set_port_name() and gp_camera_set_abilities(). If that has been omitted, gphoto2 tries to autodetect any cameras and chooses the first one if any cameras are found. It is generally a good idea to call gp_camera_exit() after transactions have been completed in order to give other applications the chance to access the camera, too.

References gp_abilities_list_detect(), gp_abilities_list_free(), gp_abilities_list_get_abilities(), gp_abilities_list_load(), gp_abilities_list_lookup_model(), gp_abilities_list_new(), gp_camera_set_abilities(), GP_ERROR_FILE_NOT_FOUND, GP_ERROR_LIBRARY, GP_ERROR_MODEL_NOT_FOUND, GP_ERROR_UNKNOWN_PORT, gp_list_count(), gp_list_free(), gp_list_get_name(), gp_list_get_value(), gp_list_new(), GP_OK, gp_port_close(), gp_port_get_info(), gp_port_info_get_path(), gp_port_info_get_type(), gp_port_info_list_free(), gp_port_info_list_get_info(), gp_port_info_list_load(), gp_port_info_list_lookup_path(), gp_port_info_list_new(), GP_PORT_NONE, gp_port_open(), GP_PORT_USB, gp_port_usb_find_device(), gp_port_usb_find_device_by_class(), CameraAbilities::library, CameraAbilities::model, _Camera::pc, _GPPort::type, CameraAbilities::usb_class, CameraAbilities::usb_product, CameraAbilities::usb_protocol, CameraAbilities::usb_subclass, and CameraAbilities::usb_vendor.

int gp_camera_new ( Camera ** camera )

Create a new camera device.

Allocates the memory for a Camera.

Parameters

camera the Camera object to initialize.

Returns: a gphoto2 error code

References gp_camera_free(), GP_ERROR_NO_MEMORY, gp_filesystem_new(), GP_OK, and gp_port_new().

int gp_camera_ref ( Camera * camera )

Increment the reference count of a camera.

Parameters

camera a Camera

Returns: a gphoto2 error code

References GP_OK, and _Camera::pc.

int gp_camera_set_abilities	(	Camera *	camera,
		CameraAbilities	abilities
	)

Sets the camera abilities.

Parameters

camera	a Camera
abilities	the CameraAbilities to be set

Returns: a gphoto2 error code

You need to call this function before calling gp_camera_init the first time unless you want gphoto2 to autodetect cameras and choose the first detected one. By setting the abilities, you tell gphoto2 what model the camera is and what camera driver should be used for accessing the camera. You can get abilities by calling gp_abilities_list_get_abilities.

References gp_camera_exit(), GP_OK, CameraAbilities::model, and _Camera::pc.

Referenced by gp_camera_init().

int gp_camera_set_config	(	Camera *	camera,
		CameraWidget *	window,
		GPContext *	context
	)

Sets the configuration.

Parameters

camera	a Camera
window	a CameraWidget
context	a GPContext

Returns: a gphoto2 error code

Typically, a window is retrieved using gp_camera_get_config and passed to this function in order to adjust the settings on the camera.

References GP_ERROR_NOT_SUPPORTED, GP_OK, and _CameraFunctions::set_config.

int gp_camera_set_port_speed	(	Camera *	camera,
		int	speed
	)

Set the camera speed.

Parameters

camera	a Camera
speed	the speed

Returns: a gphoto2 error code

This function is typically used prior first initialization using gp_camera_init for debugging purposes. Normally, a camera driver will try to figure out the current speed of the camera and set the speed to the optimal one automatically. Note that this function only works with serial ports. In other words, you have to set the camera's port to a serial one (using #gp_camera_set_port_path or #gp_camera_set_port_name) prior calling this function.

References gp_camera_exit(), GP_OK, gp_port_get_settings(), GP_PORT_SERIAL, gp_port_set_settings(), _Camera::pc, _GPPortSettings::serial, _GPPortSettingsSerial::speed, and _GPPort::type.

int gp_camera_set_single_config	(	Camera *	camera,
		const char *	name,
		CameraWidget *	widget,
		GPContext *	context
	)

Set a single configuration widget for the camera.

Parameters

camera	a Camera
name	the name of a configuration widget
widget	a CameraWidget
context	a GPContext

Returns: gphoto2 error code

This widget contains the new value of the widget to set.

References _CameraFunctions::get_config, GP_ERROR_BAD_PARAMETERS, GP_ERROR_NOT_SUPPORTED, GP_OK, GP_WIDGET_BUTTON, GP_WIDGET_DATE, gp_widget_free(), gp_widget_get_child_by_name(), gp_widget_get_type(), gp_widget_get_value(), GP_WIDGET_MENU, GP_WIDGET_RADIO, GP_WIDGET_RANGE, GP_WIDGET_SECTION, gp_widget_set_changed(), gp_widget_set_value(), GP_WIDGET_TEXT, GP_WIDGET_TOGGLE, GP_WIDGET_WINDOW, _CameraFunctions::set_config, and _CameraFunctions::set_single_config.

void gp_camera_set_timeout_funcs	(	Camera *	camera,
		CameraTimeoutStartFunc	start_func,
		CameraTimeoutStopFunc	stop_func,
		void *	data
	)

Parameters

camera	a Camera
start_func
stop_func
data

Returns: a gphoto2 error code

If your frontend has something like idle loops, it is recommended you use gp_camera_set_timeout_funcs in order to give the camera driver the possibility to keep up the connection to the camera.

References _Camera::pc.

int gp_camera_start_timeout	(	Camera *	camera,
		unsigned int	timeout,
		CameraTimeoutFunc	func
	)

Parameters

camera	a Camera
timeout	number of seconds that should pass between each call to `func`
func	the function that should be called each `timeout` seconds

Returns: The id of the background process or a gphoto2 error code

This function should be called by the camera driver during camera_init() if the camera needs to be sent messages periodically in order to prevent it from shutting down.

References GP_ERROR_NOT_SUPPORTED, and _Camera::pc.

void gp_camera_stop_timeout	(	Camera *	camera,
		unsigned int	id
	)

Stop periodic calls to keepalive function.

Parameters

camera	a Camera
id	the id of the background process previously returned by gp_camera_start_timeout

Call this function in the camera driver if you want to stop a periodic call to a function that has been started using gp_camera_start_timeout.

References _Camera::pc.

Referenced by gp_camera_exit().

int gp_camera_trigger_capture	(	Camera *	camera,
		GPContext *	context
	)

Triggers capture of one or more images.

Parameters

camera	a Camera
context	a GPContext

Returns: a gphoto2 error code

This functions just remotely causes the shutter release and returns immediately. You will want to run #gp_camera_wait_event until a image is added which can be downloaded using gp_camera_file_get.

References GP_ERROR_NOT_SUPPORTED, GP_OK, and _CameraFunctions::trigger_capture.

int gp_camera_unref ( Camera * camera )

Decrements the reference count of a Camera.

Parameters

camera a Camera

Returns: a gphoto2 error code

If the reference count reaches %0, the camera will be freed automatically.

References gp_camera_free(), GP_ERROR, GP_OK, and _Camera::pc.

int gp_camera_wait_for_event	(	Camera *	camera,
		int	timeout,
		CameraEventType *	eventtype,
		void **	eventdata,
		GPContext *	context
	)

Wait for an event from the camera.

Parameters

camera	a Camera
timeout	amount of time to wait in 1/1000 seconds
eventtype	received CameraEventType [out]
eventdata	received event specific data [out]
context	a GPContext

Returns: gphoto2 error code

This function blocks and waits for an event to come from the camera. If timeout occurs before an event is received then *eventtype==GP_EVENT_TIMEOUT and eventdata is left unchanged. If an event is received then eventtype is set to the type of event, and eventdata is set to event specific data. See the CameraEventType enum to see which eventtype's match to which types of eventdata.

References GP_ERROR_NOT_SUPPORTED, GP_OK, and _CameraFunctions::wait_for_event.

Data Structures

Typedefs

Enumerations

Functions

Some cameras need 'keep-alive-messages'.

Detailed Description

Typedef Documentation

Enumeration Type Documentation

Function Documentation
