libgphoto2 photo camera library (libgphoto2) API  2.5.10.1
gphoto2-widget.c File Reference
#include "config.h"
#include <gphoto2/gphoto2-widget.h>
#include <stdlib.h>
#include <string.h>
#include <gphoto2/gphoto2-result.h>
#include <gphoto2/gphoto2-port-log.h>

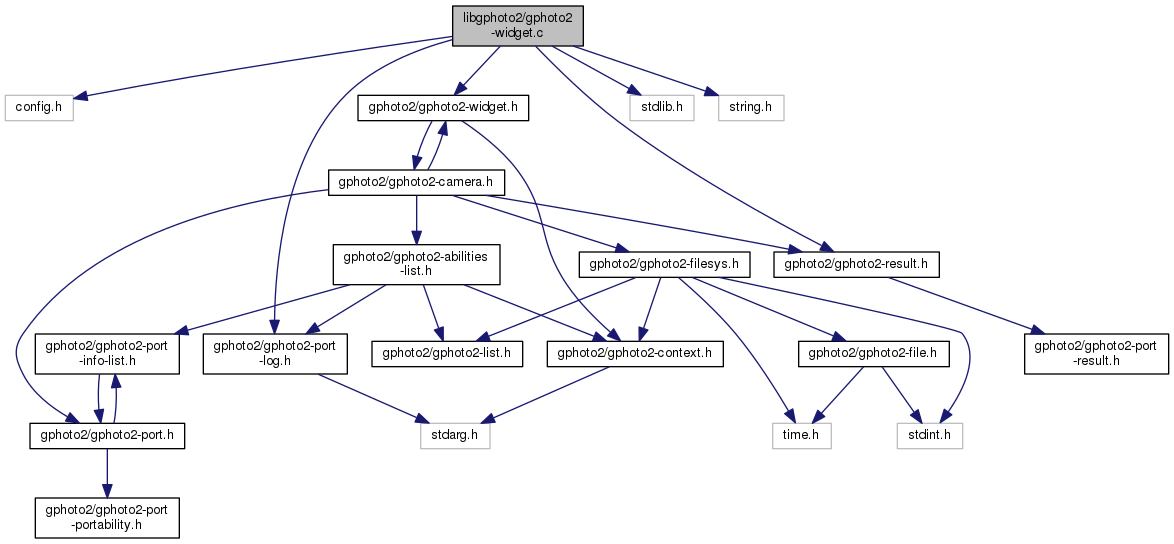

Include dependency graph for gphoto2-widget.c:

Data Structures

struct  _CameraWidget


Functions

int gp_widget_new (CameraWidgetType type, const char *label, CameraWidget **widget)
 Create a new widget. More...

int gp_widget_free (CameraWidget *widget)
 Frees a CameraWidget. More...

int gp_widget_ref (CameraWidget *widget)
 Increments the reference count for the CameraWidget. More...

int gp_widget_unref (CameraWidget *widget)
 Decrements the reference count for the CameraWidget. More...

int gp_widget_get_info (CameraWidget *widget, const char **info)
 Retrieves the information about the widget. More...

int gp_widget_set_info (CameraWidget *widget, const char *info)
 Sets the information about the widget. More...

int gp_widget_get_name (CameraWidget *widget, const char **name)
 Gets the name of the widget. More...

int gp_widget_set_name (CameraWidget *widget, const char *name)
 Sets the name of the widget. More...

int gp_widget_get_id (CameraWidget *widget, int *id)
 Retrieves the unique id of the CameraWidget. More...

int gp_widget_set_changed (CameraWidget *widget, int changed)
 Tells that the widget has been changed. More...

int gp_widget_set_readonly (CameraWidget *widget, int readonly)
 Tells that the widget is readonly. More...

int gp_widget_get_readonly (CameraWidget *widget, int *readonly)
 Retrieves the readonly state of the CameraWidget. More...

int gp_widget_get_type (CameraWidget *widget, CameraWidgetType *type)
 Retrieves the type of the CameraWidget. More...

int gp_widget_get_label (CameraWidget *widget, const char **label)
 Retrieves the label of the CameraWidget. More...

int gp_widget_set_value (CameraWidget *widget, const void *value)
 Sets the value of the widget. More...

int gp_widget_get_value (CameraWidget *widget, void *value)
 Retrieves the value of the CameraWidget. More...

int gp_widget_append (CameraWidget *widget, CameraWidget *child)
 Appends a CameraWidget to a CameraWidget. More...

int gp_widget_prepend (CameraWidget *widget, CameraWidget *child)
 Prepends a CameraWidget to a CameraWidget. More...

int gp_widget_count_children (CameraWidget *widget)
 Counts the children of the CameraWidget. More...

int gp_widget_get_child (CameraWidget *widget, int child_number, CameraWidget **child)
 Retrieves the child number child_number of the parent. More...

int gp_widget_get_child_by_label (CameraWidget *widget, const char *label, CameraWidget **child)
 Retrieves the child with label label of the CameraWidget. More...

int gp_widget_get_child_by_id (CameraWidget *widget, int id, CameraWidget **child)
 Retrieves the child with id id of the widget. More...

int gp_widget_get_child_by_name (CameraWidget *widget, const char *name, CameraWidget **child)
 Retrieves the child with name name of the widget. More...

int gp_widget_get_parent (CameraWidget *widget, CameraWidget **parent)
 Retrieves the parent of a CameraWidget. More...

int gp_widget_get_root (CameraWidget *widget, CameraWidget **root)
 Retrieves the root of the CameraWidget. More...

int gp_widget_set_range (CameraWidget *range, float min, float max, float increment)
 Sets some range parameters of the CameraWidget. More...

int gp_widget_get_range (CameraWidget *range, float *min, float *max, float *increment)
 Retrieves some range parameters of the CameraWidget. More...

int gp_widget_add_choice (CameraWidget *widget, const char *choice)
 Adds a choice to the CameraWidget. More...

int gp_widget_count_choices (CameraWidget *widget)
 Counts the choices of the CameraWidget. More...

int gp_widget_get_choice (CameraWidget *widget, int choice_number, const char **choice)
 Retrieves the choice number choice_number. More...

int gp_widget_changed (CameraWidget *widget)
 Tells if the widget has been changed. More...


Detailed Description

Author
Copyright 2000 Scott Fritzinger
License
This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.
This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.
You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Function Documentation

int gp_widget_add_choice ( CameraWidget widget,
const char *  choice
)

Adds a choice to the CameraWidget.

Parameters
widgeta CameraWidget of type GP_WIDGET_RADIO or GP_WIDGET_MENU
choice
Returns
a gphoto2 error code.

References GP_OK, GP_WIDGET_MENU, and GP_WIDGET_RADIO.

Referenced by gp_camera_get_single_config().

int gp_widget_append ( CameraWidget widget,
CameraWidget child
)

Appends a CameraWidget to a CameraWidget.

Parameters
widgeta CameraWidget
childthe CameraWidget you would like to append to above
Returns
a gphoto2 error code.

References GP_OK, GP_WIDGET_SECTION, and GP_WIDGET_WINDOW.

int gp_widget_changed ( CameraWidget widget)

Tells if the widget has been changed.

Parameters
widgeta CameraWidget
Returns
a gphoto2 error code or changed flag.

Returns 1 if the state of the CameraWidget has been changed or 0 if not. In addition, it resets the changed flag to 0.

int gp_widget_count_children ( CameraWidget widget)

Counts the children of the CameraWidget.

Parameters
widgeta CameraWidget
Returns
a gphoto2 error code or number of children

Referenced by gp_camera_get_single_config(), and gp_widget_free().

int gp_widget_count_choices ( CameraWidget widget)

Counts the choices of the CameraWidget.

Parameters
widgeta CameraWidget of type GP_WIDGET_RADIO or GP_WIDGET_MENU
Returns
a gphoto2 error code or number of choices.

References GP_WIDGET_MENU, and GP_WIDGET_RADIO.

Referenced by gp_camera_get_single_config().

int gp_widget_free ( CameraWidget widget)

Frees a CameraWidget.

Parameters
widgetthe CameraWidget to be freed
Returns
a gphoto2 error code.

References GP_OK, gp_widget_count_children(), gp_widget_free(), GP_WIDGET_SECTION, and GP_WIDGET_WINDOW.

Referenced by gp_camera_get_single_config(), gp_camera_set_single_config(), gp_widget_free(), and gp_widget_unref().

int gp_widget_get_child ( CameraWidget widget,
int  child_number,
CameraWidget **  child
)

Retrieves the child number child_number of the parent.

Parameters
widgeta CameraWidget
child_numberthe number of the child
child
Returns
a gphoto2 error code.

References GP_OK.

Referenced by gp_camera_get_single_config().

int gp_widget_get_child_by_id ( CameraWidget widget,
int  id,
CameraWidget **  child
)

Retrieves the child with id id of the widget.

Parameters
widgeta CameraWidget
idthe id of the child
child
Returns
a gphoto2 error code.

References GP_ERROR_BAD_PARAMETERS, GP_OK, and gp_widget_get_child_by_id().

Referenced by gp_widget_get_child_by_id().

int gp_widget_get_child_by_label ( CameraWidget widget,
const char *  label,
CameraWidget **  child
)

Retrieves the child with label label of the CameraWidget.

Parameters
widgeta CameraWidget
labelthe label of the child
child
Returns
a gphoto2 error code.

References GP_ERROR_BAD_PARAMETERS, GP_OK, and gp_widget_get_child_by_label().

Referenced by gp_widget_get_child_by_label().

int gp_widget_get_child_by_name ( CameraWidget widget,
const char *  name,
CameraWidget **  child
)

Retrieves the child with name name of the widget.

Parameters
widgeta CameraWidget
namethe name of the child
Returns
a gphoto2 error code.

References GP_ERROR_BAD_PARAMETERS, GP_OK, and gp_widget_get_child_by_name().

Referenced by gp_camera_get_single_config(), gp_camera_set_single_config(), and gp_widget_get_child_by_name().

int gp_widget_get_choice ( CameraWidget widget,
int  choice_number,
const char **  choice
)

Retrieves the choice number choice_number.

Parameters
widgeta CameraWidget of type GP_WIDGET_RADIO or GP_WIDGET_MENU
choice_number
choice
Returns
a gphoto2 error code

References GP_OK, GP_WIDGET_MENU, and GP_WIDGET_RADIO.

Referenced by gp_camera_get_single_config().

int gp_widget_get_id ( CameraWidget widget,
int *  id
)

Retrieves the unique id of the CameraWidget.

Parameters
widgeta CameraWidget
id
Returns
a gphoto2 error code.

References GP_OK.

int gp_widget_get_info ( CameraWidget widget,
const char **  info
)

Retrieves the information about the widget.

Parameters
widgeta CameraWidget
info
Returns
a gphoto2 error code.

References GP_OK.

int gp_widget_get_label ( CameraWidget widget,
const char **  label
)

Retrieves the label of the CameraWidget.

Parameters
widgeta CameraWidget
label
Returns
a gphoto2 error code.

References GP_OK.

Referenced by gp_camera_get_single_config().

int gp_widget_get_name ( CameraWidget widget,
const char **  name
)

Gets the name of the widget.

Parameters
widgeta CameraWidget
nameName of above widget
Returns
a gphoto2 error code.

References GP_OK.

Referenced by gp_camera_get_single_config().

int gp_widget_get_parent ( CameraWidget widget,
CameraWidget **  parent
)

Retrieves the parent of a CameraWidget.

Parameters
widgeta CameraWidget
parentthe pointer to the parent to return
Returns
a gphoto2 error code.

References GP_OK.

int gp_widget_get_range ( CameraWidget range,
float *  min,
float *  max,
float *  increment
)

Retrieves some range parameters of the CameraWidget.

Parameters
rangea CameraWidget of type GP_WIDGET_RANGE
min
max
increment
Returns
a gphoto2 error code.

References GP_OK, and GP_WIDGET_RANGE.

Referenced by gp_camera_get_single_config().

int gp_widget_get_readonly ( CameraWidget widget,
int *  readonly
)

Retrieves the readonly state of the CameraWidget.

Parameters
widgeta CameraWidget
readonly
Returns
a gphoto2 error code.

References GP_OK.

Referenced by gp_camera_get_single_config().

int gp_widget_get_root ( CameraWidget widget,
CameraWidget **  root
)

Retrieves the root of the CameraWidget.

Parameters
widgeta CameraWidget
root
Returns
a gphoto2 error code.

References GP_OK, and gp_widget_get_root().

Referenced by gp_widget_get_root().

int gp_widget_get_type ( CameraWidget widget,
CameraWidgetType type
)

Retrieves the type of the CameraWidget.

Parameters
widgeta CameraWidget
type
Returns
a gphoto2 error code.

References GP_OK.

Referenced by gp_camera_get_single_config(), and gp_camera_set_single_config().

int gp_widget_get_value ( CameraWidget widget,
void *  value
)
int gp_widget_new ( CameraWidgetType  type,
const char *  label,
CameraWidget **  widget
)

Create a new widget.

The function creates a new CameraWidget of specified type and with given label.

Parameters
typethe type
labelthe label
widget
Returns
a gphoto2 error code.

References GP_OK.

Referenced by camera_config_get(), and gp_camera_get_single_config().

int gp_widget_prepend ( CameraWidget widget,
CameraWidget child
)

Prepends a CameraWidget to a CameraWidget.

Parameters
widgeta CameraWidget
childthe CameraWidget you would like to prepend to above
Returns
a gphoto2 error code.

References GP_OK, GP_WIDGET_SECTION, and GP_WIDGET_WINDOW.

int gp_widget_ref ( CameraWidget widget)

Increments the reference count for the CameraWidget.

Parameters
widgeta CameraWidget you want to ref-count
Returns
a gphoto2 error code.

References GP_OK.

int gp_widget_set_changed ( CameraWidget widget,
int  changed
)

Tells that the widget has been changed.

Parameters
widgeta CameraWidget
changeda boolean whether we changed or not
Returns
a gphoto2 error code

Sets the changed of the CameraWidget depending on the changed parameter.

References GP_OK.

Referenced by gp_camera_set_single_config().

int gp_widget_set_info ( CameraWidget widget,
const char *  info
)

Sets the information about the widget.

Parameters
widgeta CameraWidget
infoInformation about above widget
Returns
a gphoto2 error code.

References GP_OK.

int gp_widget_set_name ( CameraWidget widget,
const char *  name
)

Sets the name of the widget.

Parameters
widgeta CameraWidget
nameName of above widget
Returns
a gphoto2 error code.

References GP_OK.

Referenced by gp_camera_get_single_config().

int gp_widget_set_range ( CameraWidget range,
float  min,
float  max,
float  increment
)

Sets some range parameters of the CameraWidget.

Parameters
rangea CameraWidget of type GP_WIDGET_RANGE
min
max
increment
Returns
a gphoto2 error code.

References GP_OK, and GP_WIDGET_RANGE.

Referenced by gp_camera_get_single_config().

int gp_widget_set_readonly ( CameraWidget widget,
int  readonly
)

Tells that the widget is readonly.

Parameters
widgeta CameraWidget
changeda boolean whether we are readonly or not
Returns
a gphoto2 error code

Sets the readonly of the CameraWidget depending on the changed parameter.

Only useful when called from the camera driver.

References GP_OK.

Referenced by gp_camera_get_single_config().

int gp_widget_set_value ( CameraWidget widget,
const void *  value
)

Sets the value of the widget.

Parameters
widgeta CameraWidget
value
Returns
a gphoto2 error code.

Please pass (char*) for GP_WIDGET_MENU, GP_WIDGET_TEXT, GP_WIDGET_RADIO, (float) for GP_WIDGET_RANGE, (int) for GP_WIDGET_DATE, GP_WIDGET_TOGGLE, and (CameraWidgetCallback) for GP_WIDGET_BUTTON.

References GP_ERROR_BAD_PARAMETERS, GP_OK, GP_WIDGET_BUTTON, GP_WIDGET_DATE, GP_WIDGET_MENU, GP_WIDGET_RADIO, GP_WIDGET_RANGE, GP_WIDGET_SECTION, GP_WIDGET_TEXT, GP_WIDGET_TOGGLE, and GP_WIDGET_WINDOW.

Referenced by gp_camera_get_single_config(), and gp_camera_set_single_config().

int gp_widget_unref ( CameraWidget widget)

Decrements the reference count for the CameraWidget.

Parameters
widgeta CameraWidget you want to unref
Returns
a gphoto2 error code.

References GP_OK, and gp_widget_free().
