gphoto2-port.c File Reference

#include "config.h"
#include <stdarg.h>
#include <stdlib.h>
#include <stdio.h>
#include <string.h>
#include <ltdl.h>
#include <gphoto2/gphoto2-port-result.h>
#include <gphoto2/gphoto2-port-library.h>
#include <gphoto2/gphoto2-port-log.h>
#include "gphoto2-port-info.h"

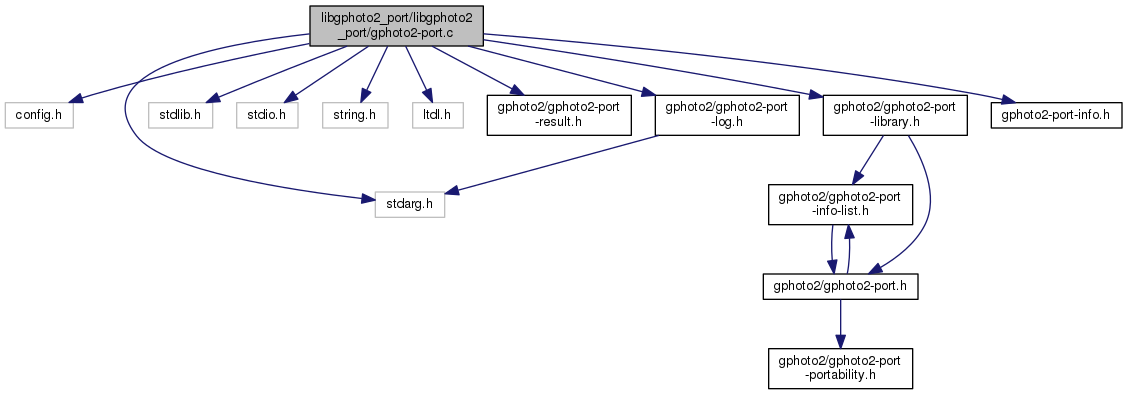

Include dependency graph for gphoto2-port.c:

Data Structures
struct	_GPPortPrivateCore
	Internal private libgphoto2_port data. This structure contains private data. More...

Macros
#define	_BSD_SOURCE
#define	_(String)   (String)
#define	N_(String)   (String)
#define	ngettext(String1, String2, Count)   ((Count==1)?String1:String2)
#define	CHECK_RESULT(result)   {int r=(result); if (r<0) return (r);}
#define	CHECK_SUPP(p, t, o)   {if (!(o)) {gp_port_set_error ((p), _("The operation '%s' is not supported by this device"), (t)); return (GP_ERROR_NOT_SUPPORTED);}}
#define	CHECK_INIT(p)   {if (!(p)->pc->ops) {gp_port_set_error ((p), _("The port has not yet been initialized")); return (GP_ERROR_BAD_PARAMETERS);}}
#define	LOG_DATA(DATA, SIZE, EXPECTED, MSG_PRE, MSG_POST, ...)
#define	FAST_TIMEOUT   50

Functions
int	gp_port_new (GPPort **port)
	Create new GPPort. More...
int	gp_port_set_info (GPPort *port, GPPortInfo info)
	Configure a port. More...
int	gp_port_get_info (GPPort *port, GPPortInfo *info)
	Retreives information about the port. More...
int	gp_port_open (GPPort *port)
	Open a port. More...
int	gp_port_close (GPPort *port)
	Close a port. More...
int	gp_port_reset (GPPort *port)
	Reset a port. More...
int	gp_port_free (GPPort *port)
	Free the port structure. More...
int	gp_port_write (GPPort *port, const char *data, int size)
	Writes a specified amount of data to a port. More...
int	gp_port_read (GPPort *port, char *data, int size)
	Read data from port. More...
int	gp_port_check_int (GPPort *port, char *data, int size)
	Check for intterupt. More...
int	gp_port_check_int_fast (GPPort *port, char *data, int size)
	Check for interrupt without wait. More...
int	gp_port_set_timeout (GPPort *port, int timeout)
	Set timeout of port. More...
int	gp_port_timeout_set (GPPort *, int)
int	gp_port_timeout_get (GPPort *, int *)
int	gp_port_get_timeout (GPPort *port, int *timeout)
	Get the current port timeout. More...
int	gp_port_set_settings (GPPort *port, GPPortSettings settings)
	Set port settings. More...
int	gp_port_settings_get (GPPort *, GPPortSettings *)
int	gp_port_settings_set (GPPort *, GPPortSettings)
int	gp_port_get_settings (GPPort *port, GPPortSettings *settings)
	Get the current port settings. More...
int	gp_port_get_pin (GPPort *port, GPPin pin, GPLevel *level)
	Get setting of specific serial PIN. More...
int	gp_port_set_pin (GPPort *port, GPPin pin, GPLevel level)
	Set specified serial PIN to value. More...
int	gp_port_send_break (GPPort *port, int duration)
	Send a break over a serial port. More...
int	gp_port_flush (GPPort *port, int direction)
	Flush data on serial port. More...
int	gp_port_usb_find_device (GPPort *port, int idvendor, int idproduct)
	Find USB device by vendor/product. More...
int	gp_port_usb_find_device_by_class (GPPort *port, int mainclass, int subclass, int protocol)
	Find USB device by interface class. More...
int	gp_port_usb_clear_halt (GPPort *port, int ep)
	Clear USB endpoint HALT condition. More...
int	gp_port_usb_msg_write (GPPort *port, int request, int value, int index, char *bytes, int size)
	Send a USB control message with output data. More...
int	gp_port_usb_msg_read (GPPort *port, int request, int value, int index, char *bytes, int size)
	Send a USB control message with input data. More...
int	gp_port_usb_msg_interface_write (GPPort *port, int request, int value, int index, char *bytes, int size)
	Send a USB interface control message with output data. More...
int	gp_port_usb_msg_interface_read (GPPort *port, int request, int value, int index, char *bytes, int size)
	Send a USB interface control message with input data. More...
int	gp_port_usb_msg_class_write (GPPort *port, int request, int value, int index, char *bytes, int size)
	Send a USB class control message with output data. More...
int	gp_port_usb_msg_class_read (GPPort *port, int request, int value, int index, char *bytes, int size)
	Send a USB class control message with input data. More...
int	gp_port_seek (GPPort *port, int offset, int whence)
	Seek on a port (for usb disk direct ports) More...
int	gp_port_send_scsi_cmd (GPPort *port, int to_dev, char *cmd, int cmd_size, char *sense, int sense_size, char *data, int data_size)
	Send a SCSI command to a port (for usb scsi ports) More...
int	gp_port_set_error (GPPort *port, const char *format,...)
	Set verbose port error message. More...
const char *	gp_port_get_error (GPPort *port)
	Get verbose port error message. More...

Detailed Description

Author

Copyright 2001 Lutz Mueller lutz@.nosp@m.user.nosp@m.s.sf..nosp@m.net

Copyright 1999 Scott Fritzinger scott.nosp@m.f@un.nosp@m.r.edu

License

This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.

You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Macro Definition Documentation

#define FAST_TIMEOUT   50

The timeout in milliseconds for fast interrupt reads.

Referenced by gp_port_check_int_fast().

#define LOG_DATA	(		DATA,
			SIZE,
			EXPECTED,
			MSG_PRE,
			MSG_POST,
			...
	)

Value:

if (SIZE != EXPECTED) \
		GP_LOG_DATA (DATA, SIZE, MSG_PRE " %i = 0x%x out of %i bytes " MSG_POST, SIZE, SIZE, EXPECTED, ##__VA_ARGS__); \
	else \
		GP_LOG_DATA (DATA, SIZE, MSG_PRE " %i = 0x%x bytes " MSG_POST, SIZE, SIZE, ##__VA_ARGS__)

Function Documentation

int gp_port_check_int	(	GPPort *	port,
		char *	data,
		int	size
	)

Check for intterupt.

Parameters

port	a GPPort
data	a pointer to an allocated buffer
size	the number of bytes that should be read

Reads a specified number of bytes from the interrupt endpoint into the supplied buffer. Function waits port->timeout miliseconds for data on interrupt endpoint.

Returns

a gphoto2 error code

References gp_log(), GP_LOG_DATA, _GPPortPrivateCore::ops, _GPPort::pc, and _GPPort::timeout.

int gp_port_check_int_fast	(	GPPort *	port,
		char *	data,
		int	size
	)

Check for interrupt without wait.

Parameters

port	a GPPort
data	a pointer to an allocated buffer
size	the number of bytes that should be read

Reads a specified number of bytes from the inerrupt endpoint into the supplied buffer. Function waits 50 miliseconds for data on interrupt endpoint.

Returns

a gphoto2 error code

References FAST_TIMEOUT, gp_log(), GP_LOG_DATA, _GPPortPrivateCore::ops, and _GPPort::pc.

int gp_port_close

(

GPPort *

port

)

Close a port.

Parameters

port

a GPPort

Closes a port temporarily. It can afterwards be reopened using gp_port_open.

Returns

a gphoto2 error code

References GP_OK, _GPPortPrivateCore::ops, and _GPPort::pc.

Referenced by gp_camera_exit(), gp_camera_init(), and gp_port_free().

int gp_port_flush	(	GPPort *	port,
		int	direction
	)

Flush data on serial port.

Parameters

port	a GPPort
direction	the direction of the flush

Flushes the serial output or input (depending on direction) of the serial port.

Returns

a gphoto2 error code

References GP_OK, _GPPortPrivateCore::ops, and _GPPort::pc.

int gp_port_free

(

GPPort *

port

)

Free the port structure.

Parameters

port

a GPPort

Closes the port and frees the memory.

Returns

a gphoto2 error code

References GP_OK, gp_port_close(), _GPPortPrivateCore::info, _GPPortPrivateCore::lh, _GPPortInfo::library_filename, _GPPortInfo::name, _GPPortPrivateCore::ops, _GPPortInfo::path, and _GPPort::pc.

Referenced by gp_abilities_list_detect(), gp_camera_free(), and gp_port_new().

const char* gp_port_get_error

(

GPPort *

port

)

Get verbose port error message.

Parameters

port

a GPPort

Retrieves an error message from a port. If you want to make sure that you get correct error messages, you need to call gp_port_set_error with an error message of NULL each time before calling another port-related function of which you want to check the return value.

Returns

a translated error message

References _GPPortPrivateCore::error, and _GPPort::pc.

int gp_port_get_info	(	GPPort *	port,
		GPPortInfo *	info
	)

Retreives information about the port.

Retrieves the informations set by gp_port_set_info().

Parameters

port	a GPPort
info	GPPortInfo

Returns

a gphoto2 error code

References GP_OK, _GPPortPrivateCore::info, and _GPPort::pc.

Referenced by gp_camera_get_abilities(), and gp_camera_init().

int gp_port_get_pin	(	GPPort *	port,
		GPPin	pin,
		GPLevel *	level
	)

Get setting of specific serial PIN.

Parameters

port	a GPPort
pin	the serial pin to be retrieved
level	the setting of the pin

Returns

a gphoto2 error code

References GP_LEVEL_HIGH, GP_LEVEL_LOW, GP_OK, GP_PIN_CD, GP_PIN_CTS, GP_PIN_DSR, GP_PIN_DTR, GP_PIN_RING, GP_PIN_RTS, _GPPortPrivateCore::ops, and _GPPort::pc.

int gp_port_get_settings	(	GPPort *	port,
		GPPortSettings *	settings
	)

Get the current port settings.

Parameters

port	a GPPort
settings	pointer to the retrieved settings

Retreives the current settings of a port.

Returns

a gphoto2 error code

References GP_OK, and _GPPort::settings.

Referenced by gp_camera_set_port_speed(), and gp_port_settings_get().

int gp_port_get_timeout	(	GPPort *	port,
		int *	timeout
	)

Get the current port timeout.

Parameters

port	a GPPort
timeout	pointer to timeout

Retreives the current timeout of the port.

Returns

a gphoto2 error code

References GP_OK, and _GPPort::timeout.

Referenced by gp_port_timeout_get().

int gp_port_new

(

GPPort **

port

)

Create new GPPort.

Allocate and initialize the memory for a new GPPort.

After you called this function, you probably want to call gp_port_set_info in order to make the newly created port functional.

Parameters

port	Pointer the GPPort* pointer

Returns

a gphoto2 error code

References GP_ERROR_NO_MEMORY, GP_OK, gp_port_free(), _GPPortPrivateCore::ops, and _GPPort::pc.

Referenced by gp_abilities_list_detect(), and gp_camera_new().

int gp_port_open

(

GPPort *

port

)

Open a port.

Parameters

port

a GPPort

Opens a port which should have been created with gp_port_new and configured with gp_port_set_info and gp_port_set_settings

Returns

a gphoto2 error code

References GP_OK, GP_PORT_SERIAL, GP_PORT_USB, _GPPortPrivateCore::ops, _GPPort::pc, and _GPPort::type.

Referenced by gp_camera_exit(), and gp_camera_init().

int gp_port_read	(	GPPort *	port,
		char *	data,
		int	size
	)

Read data from port.

Parameters

port	a GPPort
data	a pointer to an allocated buffer
size	the number of bytes that should be read

Reads a specified number of bytes from the port into the supplied buffer. It returns the number of bytes read or a negative error code.

Returns

a gphoto2 error code or the amount of data read

References gp_log(), GP_LOG_DATA, gp_port_result_as_string(), _GPPortPrivateCore::ops, and _GPPort::pc.

int gp_port_reset

(

GPPort *

port

)

Reset a port.

Parameters

port

a GPPort

Resets a port. Device will likely reconnect and appear under a new id.

Returns

a gphoto2 error code

References GP_OK, _GPPortPrivateCore::ops, and _GPPort::pc.

int gp_port_seek	(	GPPort *	port,
		int	offset,
		int	whence
	)

Seek on a port (for usb disk direct ports)

Parameters

port	a GPPort
offset	offset to seek to
whence	the underlying lseek call whence parameter

Seeks to a specific offset on the usb disk

Returns

a gphoto2 error code

References _GPPortPrivateCore::ops, and _GPPort::pc.

int gp_port_send_break	(	GPPort *	port,
		int	duration
	)

Send a break over a serial port.

Parameters

port	a GPPort
duration	duration of break in milliseconds

Sends a break with the specified duration in milliseconds.

Returns

a gphoto2 error code

References GP_OK, _GPPortPrivateCore::ops, and _GPPort::pc.

int gp_port_send_scsi_cmd	(	GPPort *	port,
		int	to_dev,
		char *	cmd,
		int	cmd_size,
		char *	sense,
		int	sense_size,
		char *	data,
		int	data_size
	)

Send a SCSI command to a port (for usb scsi ports)

Parameters

port	a GPPort
to_dev	data direction, set to 1 for a scsi cmd which sends data to the device, set to 0 for cmds which read data from the dev.
cmd	buffer holding the command to send
cmd_size	sizeof cmd buffer
sense	buffer for returning scsi sense information
sense_size	sizeof sense buffer
data	buffer containing informatino to write to the device (to_dev is 1), or to store data read from the device (to_dev 0).

Send a SCSI command to a usb scsi port attached device.

Returns

a gphoto2 error code

References GP_LOG_DATA, _GPPortPrivateCore::ops, and _GPPort::pc.

int gp_port_set_error	(	GPPort *	port,
		const char *	format,
			...
	)

Set verbose port error message.

Parameters

port	a GPPort
format	printf style format string
...	variable arguments depending on format string

Sets an error message that can later be retrieved using gp_port_get_error.

Returns

a gphoto2 error code

References _GPPortPrivateCore::error, GP_OK, and _GPPort::pc.

Referenced by gp_abilities_list_detect().

int gp_port_set_info	(	GPPort *	port,
		GPPortInfo	info
	)

Configure a port.

Makes a port functional by passing in the necessary path information (from the serial:/dev/ttyS0 or similar variables). After calling this function, you can access the port using for example gp_port_open().

Parameters

port	a GPPort
info	the GPPortInfo to set

Returns

a gphoto2 error code

References _GPPortSettingsUSB::altsetting, _GPPortSettingsSerial::bits, _GPPortSettingsUSB::config, GP_ERROR_LIBRARY, GP_ERROR_NOT_SUPPORTED, GP_OK, GP_PORT_SERIAL, gp_port_set_settings(), gp_port_set_timeout(), GP_PORT_USB, GP_PORT_USB_DISK_DIRECT, GP_PORT_USB_SCSI, _GPPortSettingsUSB::inep, _GPPortPrivateCore::info, _GPPortSettingsUSB::interface, _GPPortPrivateCore::lh, _GPPortInfo::library_filename, _GPPortInfo::name, _GPPortPrivateCore::ops, _GPPortSettingsUSB::outep, _GPPortSettingsSerial::parity, _GPPortInfo::path, _GPPortSettingsUsbDiskDirect::path, _GPPortSettingsUsbScsi::path, _GPPort::pc, _GPPortSettingsUSB::port, _GPPortSettings::serial, _GPPort::settings, _GPPortSettingsSerial::speed, _GPPortSettingsSerial::stopbits, _GPPortInfo::type, _GPPort::type, _GPPortSettings::usb, _GPPortSettings::usbdiskdirect, and _GPPortSettings::usbscsi.

Referenced by gp_abilities_list_detect(), and gp_camera_get_abilities().

int gp_port_set_pin	(	GPPort *	port,
		GPPin	pin,
		GPLevel	level
	)

Set specified serial PIN to value.

Parameters

port	a GPPort
pin	the serial pin to be retrieved
level	the setting of the pin

Pulls the specified pin of a serial port to the specified level.

Returns

a gphoto2 error code

References GP_OK, _GPPortPrivateCore::ops, and _GPPort::pc.

int gp_port_set_settings	(	GPPort *	port,
		GPPortSettings	settings
	)

Set port settings.

Parameters

port	a GPPort
settings	the GPPortSettings to be set

Adjusts the settings of a port. You should always call gp_port_get_settings, adjust the values depending on the type of the port, and then call gp_port_set_settings.

Returns

a gphoto2 error code

References GP_OK, gp_port_settings_get(), _GPPortPrivateCore::ops, _GPPort::pc, and _GPPort::settings_pending.

Referenced by gp_camera_set_port_speed(), gp_port_set_info(), and gp_port_settings_set().

int gp_port_set_timeout	(	GPPort *	port,
		int	timeout
	)

Set timeout of port.

Parameters

port	a GPPort
timeout	the timeout

Sets the timeout of a port. gp_port_read will wait timeout milliseconds for data. If no data will be received in that period, GP_ERROR_TIMEOUT will be returned.

Returns

a gphoto2 error code

References GP_OK, gp_port_timeout_set(), and _GPPort::timeout.

Referenced by gp_port_set_info(), and gp_port_timeout_set().

int gp_port_settings_get	(	GPPort *	port,
		GPPortSettings *	settings
	)

Deprecated

References gp_port_get_settings(), and gp_port_settings_set().

Referenced by gp_port_set_settings().

int gp_port_settings_set	(	GPPort *	port,
		GPPortSettings	settings
	)

Deprecated

References gp_port_set_settings().

Referenced by gp_port_settings_get().

int gp_port_timeout_get	(	GPPort *	port,
		int *	timeout
	)

Deprecated

References gp_port_get_timeout().

Referenced by gp_port_timeout_set().

int gp_port_timeout_set	(	GPPort *	port,
		int	timeout
	)

Deprecated

References gp_port_set_timeout(), and gp_port_timeout_get().

Referenced by gp_port_set_timeout().

int gp_port_usb_clear_halt	(	GPPort *	port,
		int	ep
	)

Clear USB endpoint HALT condition.

Parameters

port	a GPPort
ep	endpoint to clear HALT

Clears the HALT (stall?) endpoint condition of the specified endpoint.

Returns

a gphoto2 error code

References GP_OK, _GPPortPrivateCore::ops, and _GPPort::pc.

int gp_port_usb_find_device	(	GPPort *	port,
		int	idvendor,
		int	idproduct
	)

Find USB device by vendor/product.

Parameters

port	a GPPort
idvendor	USB vendor id
idproduct	USB product id

Find the USB device with the specified vendor:product id pair.

Returns

a gphoto2 error code

References GP_OK, _GPPortPrivateCore::ops, and _GPPort::pc.

Referenced by gp_abilities_list_load(), and gp_camera_init().

int gp_port_usb_find_device_by_class	(	GPPort *	port,
		int	mainclass,
		int	subclass,
		int	protocol
	)

Find USB device by interface class.

Parameters

port	a GPPort
mainclass	the USB interface class
subclass	the USB interface subclass
protocol	the USB interface protocol

Find the USB device with the specified vendor:product id pair.

Returns

a gphoto2 error code

References GP_OK, _GPPortPrivateCore::ops, and _GPPort::pc.

Referenced by gp_abilities_list_load(), and gp_camera_init().

int gp_port_usb_msg_class_read	(	GPPort *	port,
		int	request,
		int	value,
		int	index,
		char *	bytes,
		int	size
	)

Send a USB class control message with input data.

Parameters

port	a GPPort
request	control request code
value	control value
index	control index
bytes	pointer to data
size	size of the data

Sends a specific USB class control command and read associated data.

Returns

a gphoto2 error code

References gp_log(), GP_LOG_DATA, _GPPortPrivateCore::ops, and _GPPort::pc.

int gp_port_usb_msg_class_write	(	GPPort *	port,
		int	request,
		int	value,
		int	index,
		char *	bytes,
		int	size
	)

Send a USB class control message with output data.

Parameters

port	a GPPort
request	control request code
value	control value
index	control index
bytes	pointer to data
size	size of the data

Sends a specific USB class control command and write associated data.

Returns

a gphoto2 error code

References GP_LOG_DATA, _GPPortPrivateCore::ops, and _GPPort::pc.

int gp_port_usb_msg_interface_read	(	GPPort *	port,
		int	request,
		int	value,
		int	index,
		char *	bytes,
		int	size
	)

Send a USB interface control message with input data.

Parameters

port	a GPPort
request	control request code
value	control value
index	control index
bytes	pointer to data
size	size of the data

Sends a specific USB control command and read associated data.

Returns

a gphoto2 error code

References gp_log(), GP_LOG_DATA, _GPPortPrivateCore::ops, and _GPPort::pc.

int gp_port_usb_msg_interface_write	(	GPPort *	port,
		int	request,
		int	value,
		int	index,
		char *	bytes,
		int	size
	)

Send a USB interface control message with output data.

Parameters

port	a GPPort
request	control request code
value	control value
index	control index
bytes	pointer to data
size	size of the data

Sends a specific USB interface control command and write associated data.

Returns

a gphoto2 error code

References GP_LOG_DATA, _GPPortPrivateCore::ops, and _GPPort::pc.

int gp_port_usb_msg_read	(	GPPort *	port,
		int	request,
		int	value,
		int	index,
		char *	bytes,
		int	size
	)

Send a USB control message with input data.

Parameters

port	a GPPort
request	control request code
value	control value
index	control index
bytes	pointer to data
size	size of the data

Sends a specific USB interface control command and read associated data.

Returns

a gphoto2 error code

References gp_log(), GP_LOG_DATA, _GPPortPrivateCore::ops, and _GPPort::pc.

int gp_port_usb_msg_write	(	GPPort *	port,
		int	request,
		int	value,
		int	index,
		char *	bytes,
		int	size
	)

Send a USB control message with output data.

Parameters

port	a GPPort
request	control request code
value	control value
index	control index
bytes	pointer to data
size	size of the data

Sends a specific USB control command and write associated data.

Returns

a gphoto2 error code

References GP_LOG_DATA, _GPPortPrivateCore::ops, and _GPPort::pc.

int gp_port_write	(	GPPort *	port,
		const char *	data,
		int	size
	)

Writes a specified amount of data to a port.

Parameters

port	a GPPort
data	the data to write to the port
size	the number of bytes to write to the port

Writes data to the port. On non-serial ports the amount of data written is returned (and not just GP_OK).

Returns

a negative gphoto2 error code or the amount of data written.

References gp_log(), GP_LOG_DATA, gp_port_result_as_string(), _GPPortPrivateCore::ops, and _GPPort::pc.
