libgphoto2 photo camera library (libgphoto2) API  2.5.10.1
gphoto2-port-log.c File Reference
#include "config.h"
#include <gphoto2/gphoto2-port-log.h>
#include <stdlib.h>
#include <stdarg.h>
#include <string.h>
#include <stdio.h>
#include <gphoto2/gphoto2-port-result.h>

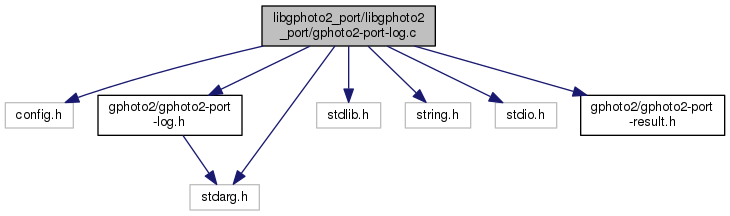

Include dependency graph for gphoto2-port-log.c:

Data Structures

struct  LogFunc
 Internal logging function entry. More...


Macros

#define _BSD_SOURCE

#define _(String)   (String)

#define N_(String)   (String)

#define HEXDUMP_OFFSET_WIDTH   4

#define HEXDUMP_BLOCK_DISTANCE   2

#define HEXDUMP_INIT_X   (HEXDUMP_OFFSET_WIDTH + HEXDUMP_BLOCK_DISTANCE)

#define HEXDUMP_INIT_Y   (HEXDUMP_INIT_X + 3 * 16 - 1 + HEXDUMP_BLOCK_DISTANCE)

#define HEXDUMP_LINE_WIDTH   (HEXDUMP_INIT_Y + 16)

#define HEXDUMP_MIDDLE   (HEXDUMP_INIT_X + 3 * 8 - 1)

#define HEXDUMP_COMPLETE_LINE


Functions

int gp_log_add_func (GPLogLevel level, GPLogFunc func, void *data)
 Add a function to get logging information. More...

char * gpi_vsnprintf (const char *format, va_list args)

int gp_log_remove_func (int id)
 Remove a logging receiving function. More...

void gp_log_data (const char *domain, const char *data, unsigned int size, const char *format,...)
 Log data. More...

void gp_logv (GPLogLevel level, const char *domain, const char *format, va_list args)
 Log a debug or error message with va_list. More...

void gp_log (GPLogLevel level, const char *domain, const char *format,...)
 Log a debug or error message. More...

void gp_log_with_source_location (GPLogLevel level, const char *file, int line, const char *func, const char *format,...)


Detailed Description

Author
Copyright 2001 Lutz Mueller lutz@.nosp@m.user.nosp@m.s.sf..nosp@m.net
License
This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.
This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.
You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Macro Definition Documentation

#define HEXDUMP_BLOCK_DISTANCE   2

Distance between offset, hexdump and ascii blocks. Note that HEXDUMP_COMPLETE_LINE needs to be changed when this value is changed.

#define HEXDUMP_COMPLETE_LINE
Value:
{\
curline[HEXDUMP_OFFSET_WIDTH - 4] = hexchars[(index >> 12) & 0xf]; \
curline[HEXDUMP_OFFSET_WIDTH - 3] = hexchars[(index >> 8) & 0xf]; \
curline[HEXDUMP_OFFSET_WIDTH - 2] = hexchars[(index >> 4) & 0xf]; \
curline[HEXDUMP_OFFSET_WIDTH - 1] = '0'; \
curline[HEXDUMP_OFFSET_WIDTH + 0] = ' '; \
curline[HEXDUMP_OFFSET_WIDTH + 1] = ' '; \
curline[HEXDUMP_MIDDLE] = '-'; \
curline[HEXDUMP_INIT_Y-2] = ' '; \
curline[HEXDUMP_INIT_Y-1] = ' '; \
curline[HEXDUMP_LINE_WIDTH] = '\n'; \
curline = curline + (HEXDUMP_LINE_WIDTH + 1);}
#define HEXDUMP_INIT_Y
Definition: gphoto2-port-log.c:168
#define HEXDUMP_LINE_WIDTH
Definition: gphoto2-port-log.c:171
#define HEXDUMP_OFFSET_WIDTH
Definition: gphoto2-port-log.c:156
#define HEXDUMP_MIDDLE
Definition: gphoto2-port-log.c:174

We are lazy and do our typing only once. Please note that you have to add/remove some lines when increasing/decreasing the values of HEXDUMP_BLOCK_DISTANCE and/or HEXDUMP_OFFSET_WIDTH.

Referenced by gp_log_data().

#define HEXDUMP_INIT_X   (HEXDUMP_OFFSET_WIDTH + HEXDUMP_BLOCK_DISTANCE)

Initial value for x "pointer" (for hexdump)

Referenced by gp_log_data().

#define HEXDUMP_INIT_Y   (HEXDUMP_INIT_X + 3 * 16 - 1 + HEXDUMP_BLOCK_DISTANCE)

Initial value for y "pointer" (for ascii values)

Referenced by gp_log_data().

#define HEXDUMP_LINE_WIDTH   (HEXDUMP_INIT_Y + 16)

Used to switch to next line

Referenced by gp_log_data().

#define HEXDUMP_MIDDLE   (HEXDUMP_INIT_X + 3 * 8 - 1)

Used to put the '-' character in the middle of the hexdumps

#define HEXDUMP_OFFSET_WIDTH   4

Width of offset field in characters. Note that HEXDUMP_COMPLETE_LINE needs to be changed when this value is changed.

Function Documentation

void gp_log ( GPLogLevel  level,
const char *  domain,
const char *  format,
  ...
)

Log a debug or error message.

Parameters
levelgphoto2 log level
domainthe log domain
formata printf style format string
...the variable argumentlist for above format string

Logs a message at the given log level. You would normally use this function to log general debug output in a printf way.

References gp_log_add_func(), gp_log_data(), gp_log_remove_func(), and gp_logv().

Referenced by gp_context_progress_start(), gp_log_data(), gp_port_check_int(), gp_port_check_int_fast(), gp_port_read(), gp_port_usb_msg_class_read(), gp_port_usb_msg_interface_read(), gp_port_usb_msg_read(), and gp_port_write().

int gp_log_add_func ( GPLogLevel  level,
GPLogFunc  func,
void *  data
)

Add a function to get logging information.

Parameters
levelthe maximum level of logging it will get, up to and including the passed value
funca GPLogFunc
datadata

Adds a log function that will be called for each log message that is flagged with a log level that appears in given log level. This function returns an id that you can use for removing the log function again (using gp_log_remove_func).

Returns
an id or a gphoto2 error code

References LogFunc::data, LogFunc::func, LogFunc::id, and LogFunc::level.

Referenced by gp_log().

void gp_log_data ( const char *  domain,
const char *  data,
unsigned int  size,
const char *  format,
  ...
)

Log data.

domain the domain data the data to be logged size the size of the data

Takes the data and creates a formatted hexdump string. If you would like to log text messages, use gp_log instead.

References gp_log(), GP_LOG_DATA, HEXDUMP_COMPLETE_LINE, HEXDUMP_INIT_X, HEXDUMP_INIT_Y, and HEXDUMP_LINE_WIDTH.

Referenced by gp_log().

int gp_log_remove_func ( int  id)

Remove a logging receiving function.

Parameters
idan id (return value of gp_log_add_func)

Removes the log function with given id.

Returns
a gphoto2 error code

References GP_ERROR_BAD_PARAMETERS, and GP_OK.

Referenced by gp_log().

void gp_logv ( GPLogLevel  level,
const char *  domain,
const char *  format,
va_list  args
)

Log a debug or error message with va_list.

Parameters
levelgphoto2 log level
domainthe domain
formatthe format
argsthe va_list corresponding to format

Logs a message at the given log level. You would normally use this function to log as yet unformatted strings.

References LogFunc::func.

Referenced by gp_log().
