bayer.c File Reference

Bayer array conversion routines. More...

#include "config.h"
#include "bayer.h"
#include <gphoto2/gphoto2-result.h>

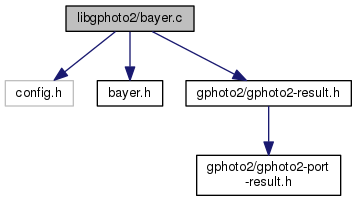

Include dependency graph for bayer.c:

Macros

#define RED   0

#define GREEN   1

#define BLUE   2

#define AD(x, y, w)   ((y)*(w)*3+3*(x))


Functions

int gp_bayer_expand (unsigned char *input, int w, int h, unsigned char *output, BayerTile tile)
 Expand a bayer raster style image to a RGB raster. More...

int gp_bayer_interpolate (unsigned char *image, int w, int h, BayerTile tile)
 Interpolate a expanded bayer array into an RGB image. More...

int gp_bayer_decode (unsigned char *input, int w, int h, unsigned char *output, BayerTile tile)
 Convert a bayer raster style image to a RGB raster. More...


Detailed Description

Bayer array conversion routines.

Author
Copyright 2001 Lutz Mueller lutz@.nosp@m.user.nosp@m.s.sf..nosp@m.net
Copyright 2007 Theodore Kilgore kilgo.nosp@m.ta@a.nosp@m.uburn.nosp@m..edu
gp_bayer_accrue() from Theodore Kilgore kilgo.nosp@m.ta@a.nosp@m.uburn.nosp@m..edu contains suggestions by B. R. Harris (e-mail address disappeared) and Werner Eugster eugst.nosp@m.er@g.nosp@m.iub.u.nosp@m.nibe.nosp@m..ch
License
This library is free software; you can redistribute it and/or modify it under the terms of the GNU Lesser General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.
This library is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU Lesser General Public License for more details.
You should have received a copy of the GNU Lesser General Public License along with this library; if not, write to the Free Software Foundation, Inc., 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301 USA

Function Documentation

int gp_bayer_decode ( unsigned char *  input,
int  w,
int  h,
unsigned char *  output,
BayerTile  tile
)

Convert a bayer raster style image to a RGB raster.

Parameters
inputthe bayer CCD array as linear input
wwidth of the above array
hheight of the above array
outputRGB output array (linear, 3 bytes of R,G,B for every pixel)
tilehow the 2x2 bayer array is layed out

A regular CCD uses a raster of 2 green, 1 blue and 1 red components to cover a 2x2 pixel area. The camera or the driver then interpolates a 2x2 RGB pixel set out of this data.

This function expands and interpolates the bayer array to 3 times larger bitmap with RGB values interpolated.

Returns
a gphoto error code

References gp_bayer_expand(), gp_bayer_interpolate(), and GP_OK.

int gp_bayer_expand ( unsigned char *  input,
int  w,
int  h,
unsigned char *  output,
BayerTile  tile
)

Expand a bayer raster style image to a RGB raster.

Parameters
inputthe bayer CCD array as linear input
wwidth of the above array
hheight of the above array
outputRGB output array (linear, 3 bytes of R,G,B for every pixel)
tilehow the 2x2 bayer array is layed out

A regular CCD uses a raster of 2 green, 1 blue and 1 red components to cover a 2x2 pixel area. The camera or the driver then interpolates a 2x2 RGB pixel set out of this data.

This function expands the bayer array to 3 times larger bitmap with RGB values copied as-is. Pixels were no sensor was there are 0. The data is supposed to be processed further by for instance gp_bayer_interpolate().

Returns
a gphoto error code

References BAYER_TILE_BGGR, BAYER_TILE_BGGR_INTERLACED, BAYER_TILE_GBRG, BAYER_TILE_GBRG_INTERLACED, BAYER_TILE_GRBG, BAYER_TILE_GRBG_INTERLACED, BAYER_TILE_RGGB, BAYER_TILE_RGGB_INTERLACED, and GP_OK.

Referenced by gp_ahd_decode(), and gp_bayer_decode().

int gp_bayer_interpolate ( unsigned char *  image,
int  w,
int  h,
BayerTile  tile
)

Interpolate a expanded bayer array into an RGB image.

Parameters
imagethe linear RGB array as both input and output
wwidth of the above array
hheight of the above array
tilehow the 2x2 bayer array is layed out

This function interpolates a bayer array which has been pre-expanded by gp_bayer_expand() to an RGB image. It uses various interpolation methods, also see gp_bayer_accrue().

Returns
a gphoto error code

References BAYER_TILE_BGGR, BAYER_TILE_BGGR_INTERLACED, BAYER_TILE_GBRG, BAYER_TILE_GBRG_INTERLACED, BAYER_TILE_GRBG, BAYER_TILE_GRBG_INTERLACED, BAYER_TILE_RGGB, BAYER_TILE_RGGB_INTERLACED, and GP_OK.

Referenced by gp_bayer_decode().
